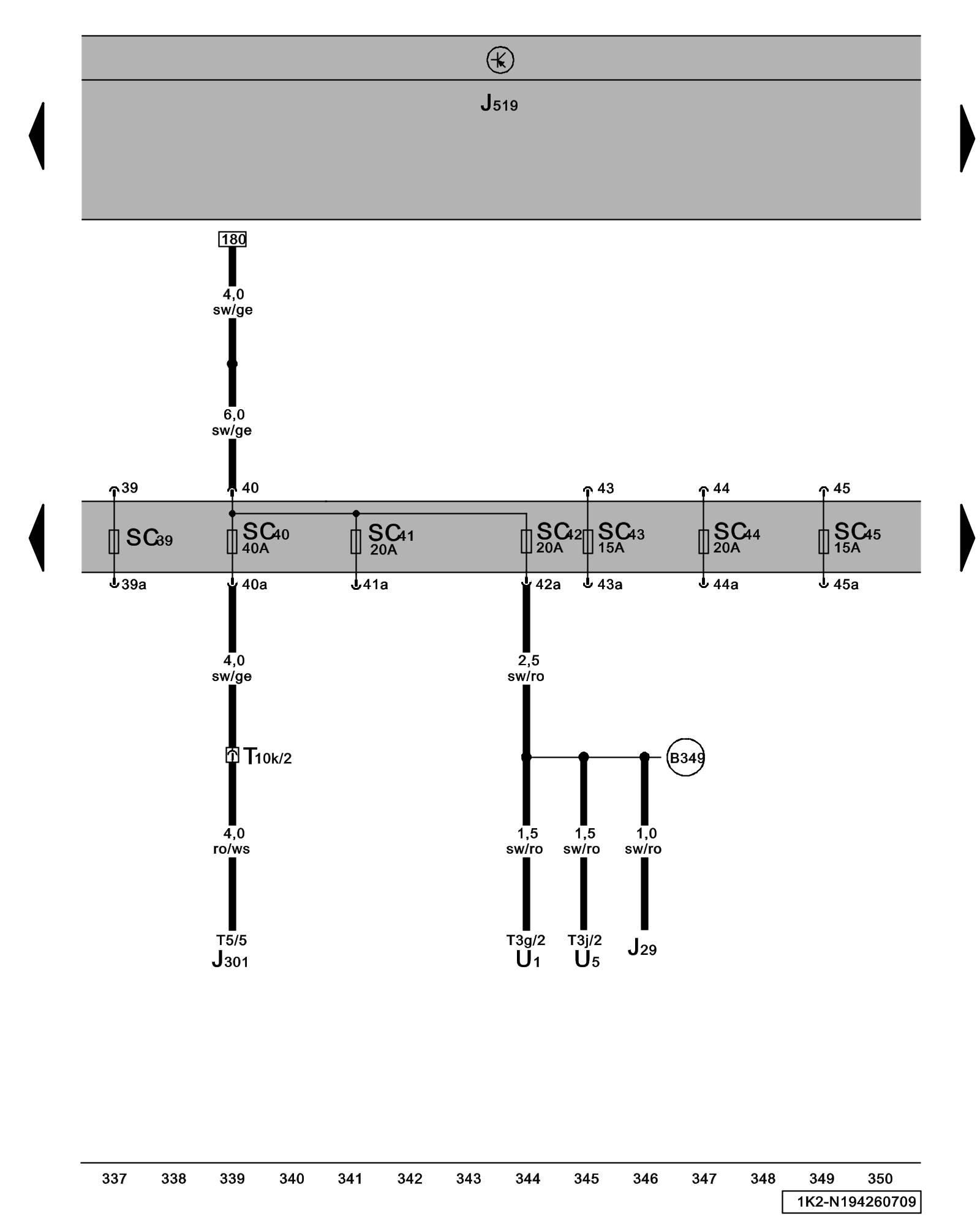

Diagram 194/26 (Tracks 337-350)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Fuses





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J29 - Blocking Diode

J301 - A/C Control Module Climatic (Manual Climate Control) Heating and A/C System Components Overview

J519 - Vehicle Electrical System Control Module Locations Locations

SC39 - Fuse 39 (on fuse panel C) Locations

SC40 - Fuse 40 (on fuse panel C) Locations

SC41 - Fuse 41 (on fuse panel C) Locations

SC42 - Fuse 42 (on fuse panel C) Locations

SC43 - Fuse 43 (on fuse panel C) Locations

SC44 - Fuse 44 (on fuse panel C) Locations

SC45 - Fuse 45 (on fuse panel C) Locations

T3g - 3-Pin Connector

T3j - 3-Pin Connector

T5 - 5-Pin Connector

T10k - 10-Pin Connector

U1 - Cigarette Lighter

U5 - 12 V Socket

(B349) - Plus Connection 2 (75A) (in main wiring harness)
