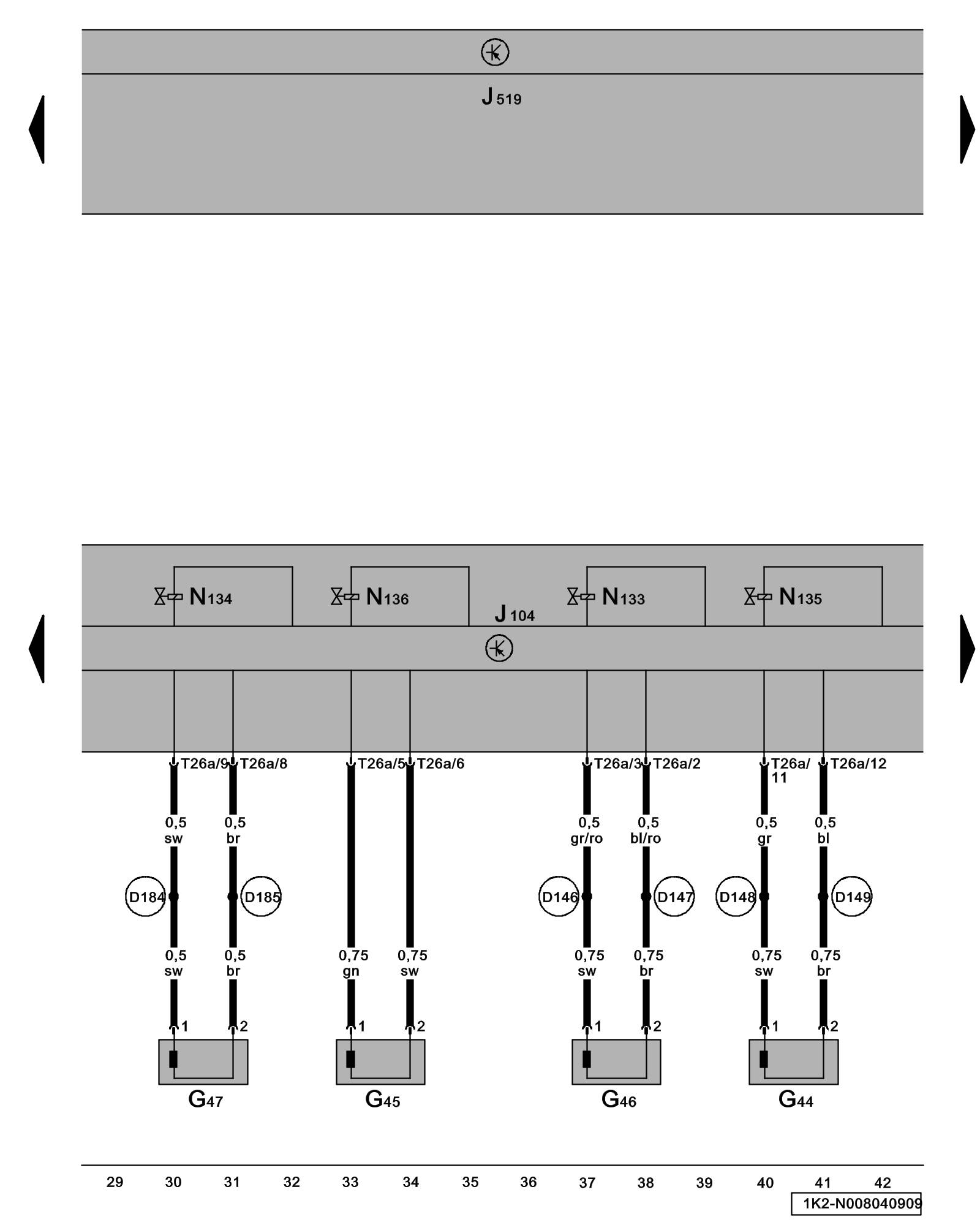

Diagram 8/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Right Rear ABS Wheel Speed Sensor, Right Front ABS Wheel Speed Sensor, Left Rear ABS Wheel Speed Sensor, Left Front ABS Wheel Speed Sensor, ABS Control Module, Vehicle Electrical System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G44 - Right Rear ABS Wheel Speed Sensor Locations

G45 - Right Front ABS Wheel Speed Sensor Locations

G46 - Left Rear ABS Wheel Speed Sensor Locations

G47 - Left Front ABS Wheel Speed Sensor Locations

J104 - ABS Control Module Locations

J519 - Vehicle Electrical System Control Module Locations Locations

N133 - Right Rear ABS Inlet Valve

N134 - Left Rear ABS Inlet Valve

N135 - Right Rear ABS Outlet Valve

N136 - Left Rear ABS Outlet Valve

T26a - 26-Pin Connector

(D146) - Connection (speed sensor rear, left +), in wiring harness engine compartment

(D147) - Connection (speed sensor rear, left -), in wiring harness engine compartment

(D148) - Connection (speed sensor rear, right +), in wiring harness engine compartment

(D149) - Connection (speed sensor rear, right -), in wiring harness engine compartment

(D184) - Left Front Speed Sensor + Connection (in engine wiring harness)

(D185) - Left Front Speed Sensor - Connection (in engine wiring harness)
