Rear Bumper Cover, Sedan

Rear Bumper Cover, Sedan

NOTE: Due to model variations, small deviations must be considered during removal and installation.

Removing
- Remove taillamp assembly in side panel on left and right.

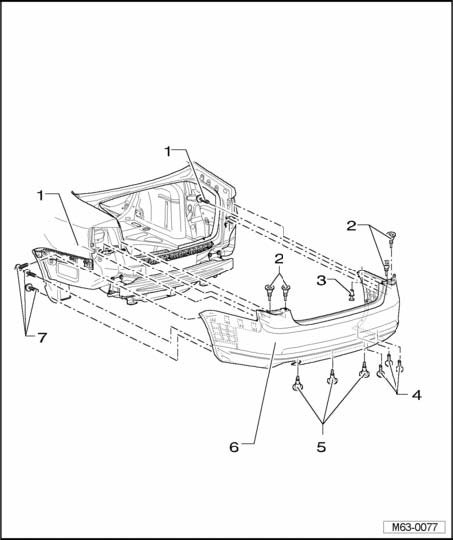

- Remove screws - 7 - in area of left and right wheelhousing liner.
- Pry out left and right expanding rivet - 3 - using a screwdriver.
- Remove bolts - 4 - and - 5 - from below.
- Remove bolts - 2 - from above.
- Remove bolt - 1 - on left and right of luggage compartment out (remove side luggage compartment cover).

A second technician is required for the rest of the removal procedure.

- With a second mechanic, pull bumper cover - 6 - parallel out of guide profiles.







- Disconnect harness connectors of installed electrical components.







Installing
Installation is performed in the reverse order of removal.

Make sure gaps are parallel and pay attention to gap dimensions.
