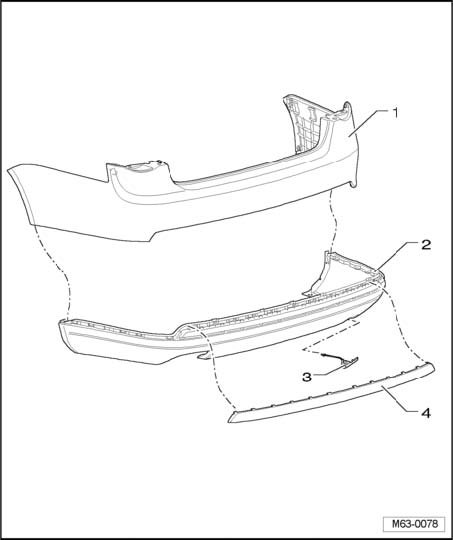

Rear Bumper Cover With Attachments Assembly Overview, Sedan

Rear Bumper Cover With Attachments Assembly Overview, Sedan







1 - Bumper cover
- Material PP/EPDM

2 - Spoiler
- Material PC/ABS
- Secured to bumper cover
- Can only be removed when bumper cover is removed

3 - Towing eyelet cap
- Secured to bumper cover

4 - Protective molding
- Secured to spoiler
- Can only be removed when spoiler is removed
