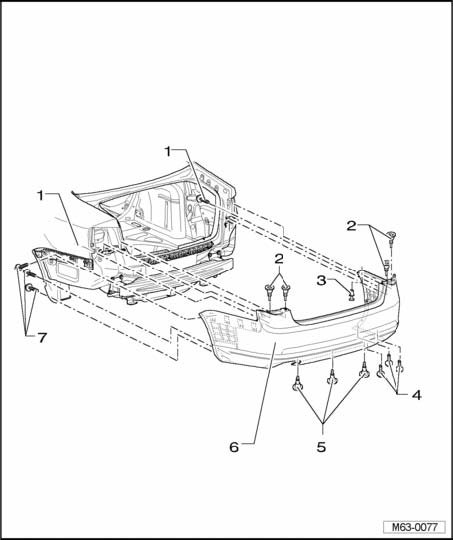

Rear Bumper Cover Assembly Overview, Sedan

Rear Bumper Cover Assembly Overview, Sedan







1 - Screw
- 1 per side
- Bolted from luggage compartment out (to remove, remove side luggage compartment cover)
- 8 Nm

2 - Screw
- 5 Nm

3 - Expanding rivet
- 1 per side

4 - Screw
- Qty. 3
- Only on the right side
- 2 Nm

5 - Screw
- Qty. 3
- 5 Nm

6 - Bumper cover
- Material PP/EPDM

7 - Screw
- 3 per side
- 2 Nm
