High-Mount Brake Light, GTI

High-Mount Brake Light, GTI

• Failure of LEDs in high-mount brake lights:

• Individual LEDs (Light Emitting Diodes) in auxiliary brake lights are combined into groups of up to four LEDs and are supplied with power as a group.

• The high-mount brake light is designed in such a way that it still meets legal requirements when one LED group fails.

• If another LED group fails, these legal requirements are no longer met.

• When one LED group fails, the intact LEDs are given a higher load, by which failure of other LED groups can be assumed in the near future.

• If more than four individual LEDs in auxiliary brake light have failed, the auxiliary brake light must be replaced (repair measure).

Removing

- Switch off ignition, switch off all electrical consumers and remove ignition key.

- Remove roof edge spoiler

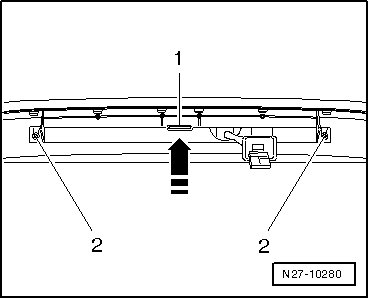

- Remove both screws - 2 - on inside of roof edge spoiler.





- Release catch - 1 - and remove High level brake light bulb (M25) toward back from roof edge spoiler.

Installing

Install in reverse order of removal, noting the following:

• When installing roof edge spoiler, ensure rubber seal between High level brake light bulb (M25) wiring harness and body is seated correctly.
