Diagram 54/10 (Tracks 113-126)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

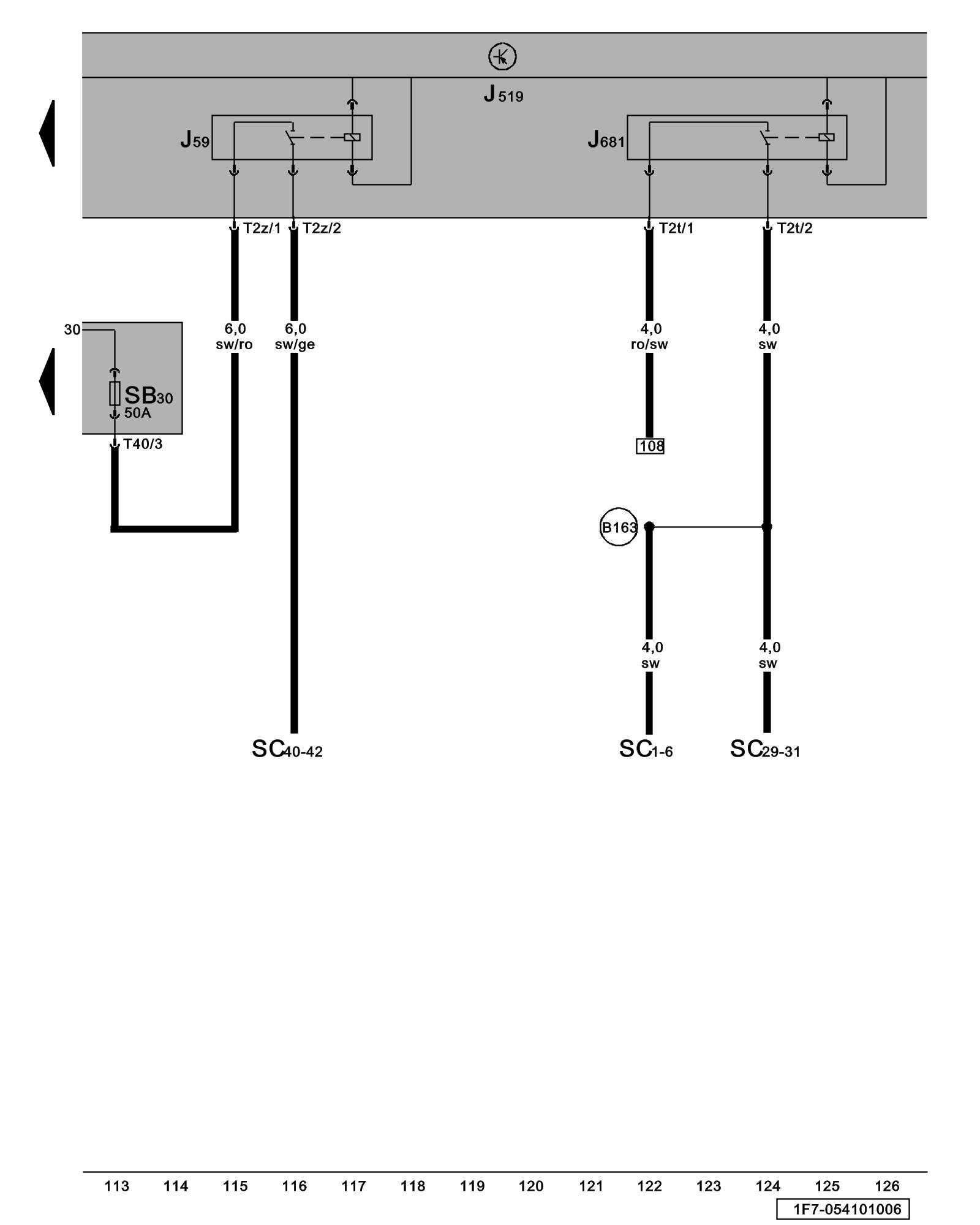

Fuse SB30, Load Reduction Relay, Power Supply Relay 2 (terminal 15)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J59 - Load Reduction Relay Overview of Relay Carrier

J519 - Vehicle Electrical System Control Module Overview of Control Modules

J681 - Power Supply Relay 2 (terminal 15) Overview of Relay Carrier

SB30 - Fuse 30 (on fuse panel B) Overview of Fuses

SC1 - Fuse 1 (on fuse panel C) Overview of Fuses

SC29 - Fuse 29 (on fuse panel C) Overview of Fuses

SC40 - Fuse 40 (on fuse panel C) Overview of Fuses

T2t - Double Connector

T2z - Double Connector

T40 - 40-Pin Connector, on electronics box

(B163) - Plus Connection 1 (15) (in interior wiring harness)

Previous Diagram 54/9 (Tracks 99-112)
