Luggage Cover Contact Switch (F364)

Luggage Cover Contact Switch (F364)

Removal

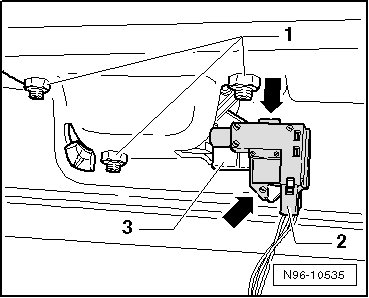

- Release luggage compartment trim on left side until harness connector - 2 - is accessible.






- Disconnect electrical connection - 2 -.

- Remove trim from vehicle.

- Disengage catches - arrows - and remove Luggage Cover Contact Switch.

- Remove nuts - 1 - and remove base carrier - 3 - from trim.

Installation

Installation is performed in the reverse order of removal.
