Diagram 121/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

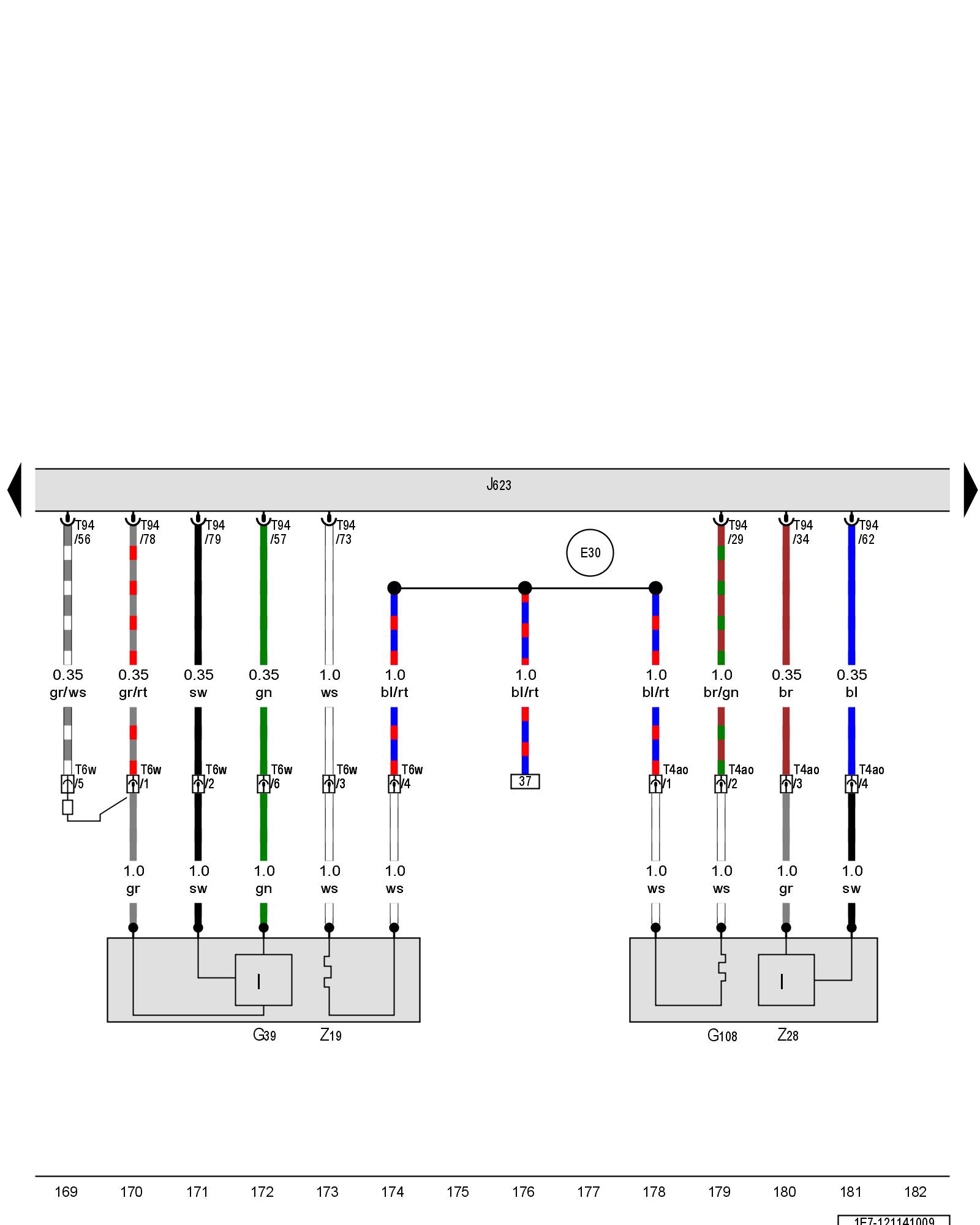

Heated oxygen sensor, Heated oxygen sensor 2, Engine control module, Oxygen sensor heater, Oxygen sensor 2 heater





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

G39 - Heated oxygen sensor Locations

G108 - Heated oxygen sensor 2 Locations

J623 - Engine control module Overview of Control Modules

T4ao - 4-pin connector

T6w - 6-pin connector

T94 - 94-pin connector

Z19 - Oxygen sensor heater

Z28 - Oxygen sensor 2 heater

(E30) - Connection (87a) (in engine wiring harness)

Previous Diagram 121/13 (Tracks 155-168)

Next Diagram 121/15 (Tracks 183-196)
