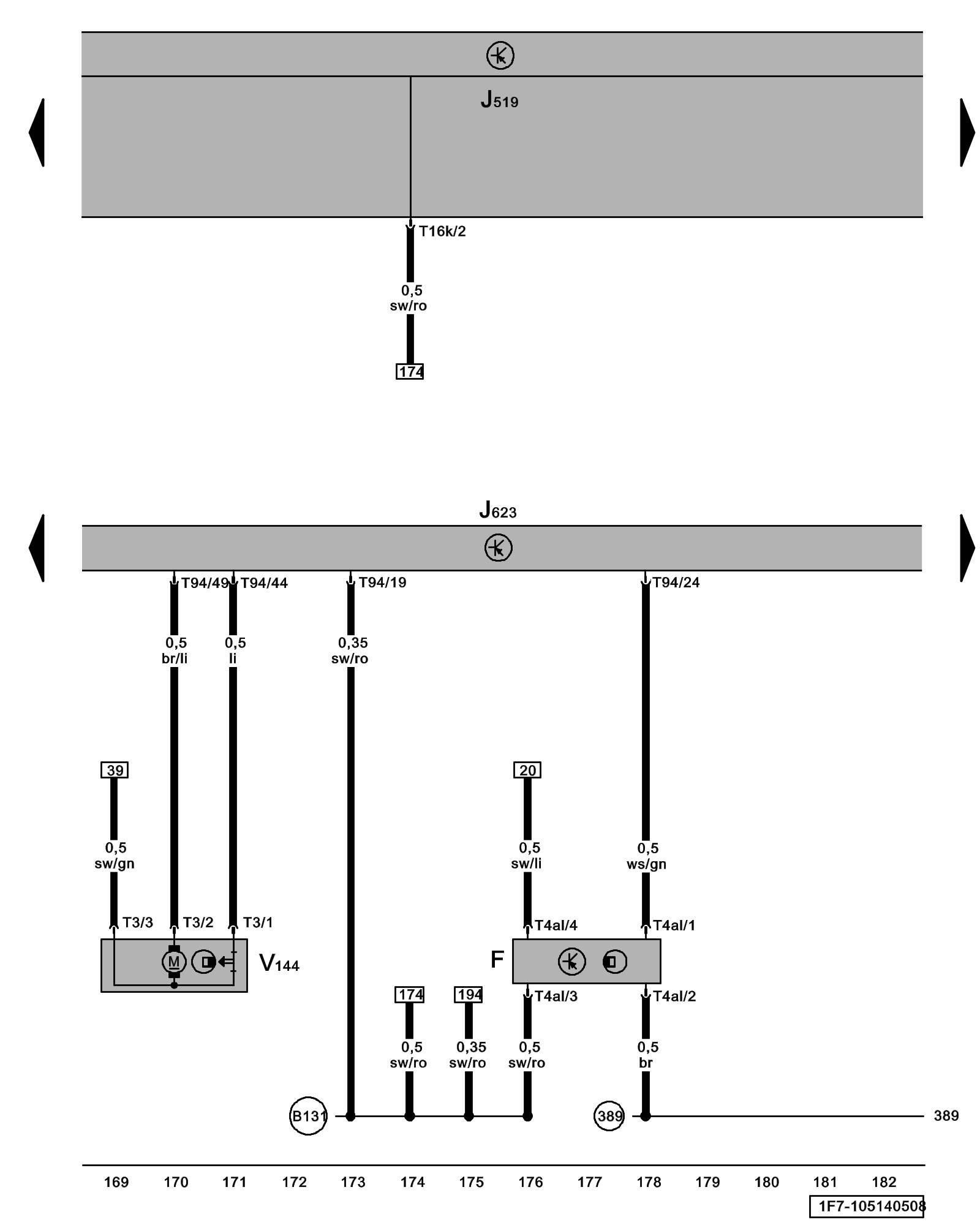

Diagram 105/14 (Tracks 169-182)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Brake Light Switch, Vehicle Electrical System Control Module, Engine Control Module (ECM), Leak Detection Pump (LDP)





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

F - Brake Light Switch Component Locations

J519 - Vehicle Electrical System Control Module Overview of Control Modules

J623 - Engine Control Module (ECM), in plenum chamber, center Overview of Control Modules

T3 - 3-Pin Connector

T4al - 4-Pin Connector

T16k - 16-Pin Connector

T94 - 94-Pin Connector

V144 - Leak Detection Pump (LDP) 2.0L CCTA, CBFA and BPY Overviews

(389) - Ground Connection 24 (in main wiring harness)

(B131) - Connection (54) (in interior wiring harness)
