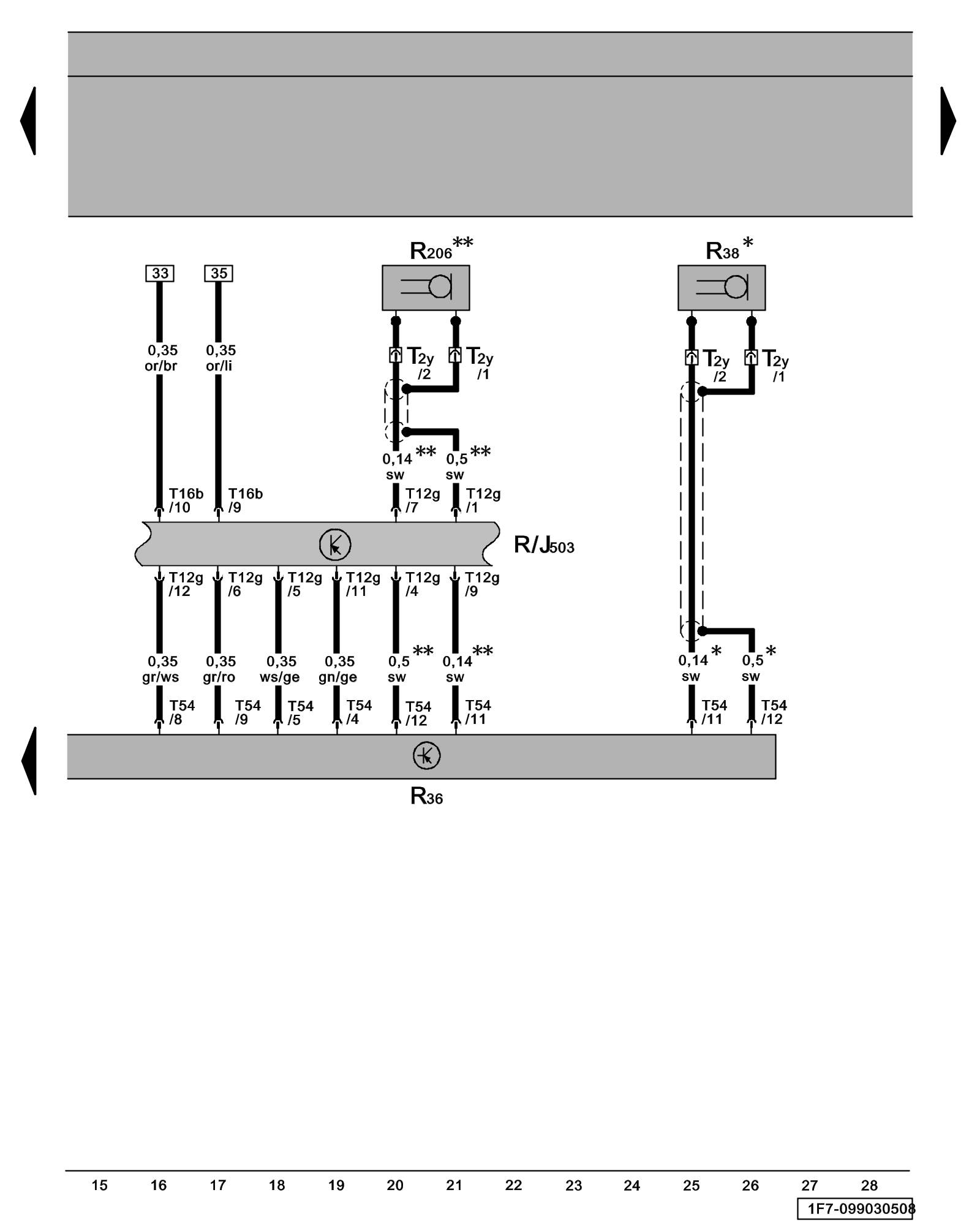

Diagram 99/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Telephone Transceiver, Radio/Navigation Display Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Locations

R - Radio Locations

R36 - Telephone Transceiver Overview of Control Modules

R38 - Telephone Microphone Telephone System Overview

R206 - Voice Control Microphone

T2y - Double Connector

T12g - 12-Pin Connector

T16b - 16-Pin Connector

T54 - 54-Pin Connector

* - Only models without navigation system or RNS 300

** - Only models with radio/navigation system RNS 510
