Door Components, Noise Insulation Assembly Overview

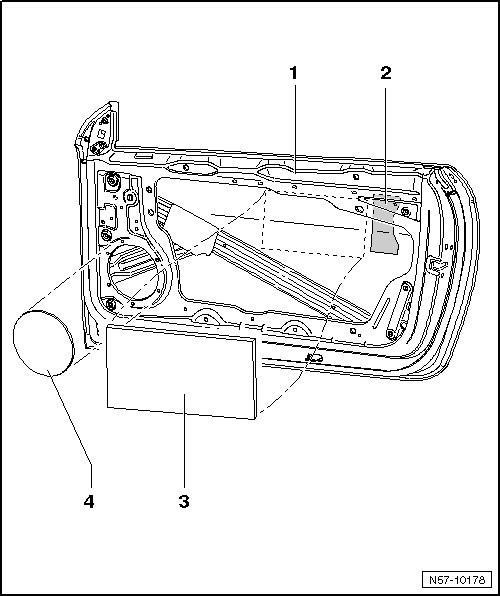

Noise Insulation Assembly Overview






1 Door

2 Reinforcement

• Self-adhesive

• Installing:

- Cut to size if necessary

- Heat using a hot air gun (V.A.G 1416) and press onto the outer door panel.

3 Insulation

• Self-adhesive

• Installing:

- Cut to size if necessary

- Heat using a hot air gun (V.A.G 1416) and press onto the outer door panel.

4 Cover

• Self-adhesive

• Only present on vehicles without door speaker.
