Luggage Compartment Right Side Trim

Luggage Compartment Right Side Trim

Removing

- Position rear lid in service position.

- Switch off ignition.

- Remove floor carpet from luggage compartment.

Only vehicles with 6-cylinder gasoline engine

- Remove battery covers (6-cylinder gasoline engine). Refer to => [ Battery Covers, 6-Cylinder ]

All vehicles

- Remove lock carrier cover. Refer to => [ Lock Carrier Cover ] Lock Carrier Cover

- Remove luggage compartment cover. Refer to => [ Luggage Compartment Lid Cover ] Luggage Compartment Lid Cover

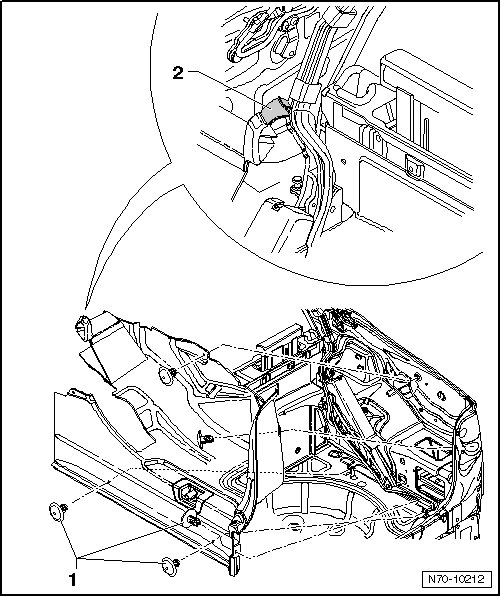

- Remove the five securing clips - 1 -.

- Open film hinge - 2 - and remove trim from luggage compartment.






Installation

- Install in reverse order of removal.

• Check the fasteners for damage and replace if necessary.
