Front Treble Speaker

Front Treble Speaker

• Treble speaker is installed in mirror triangle at each front door.

• Removal and installation of left or right side speakers is identical.

Removal

Do the following before starting the procedure:

- Turn off the ignition and all electric consumers and remove the key.

The door trim panel must be removed first in order to remove a speaker.

- Disconnect harness connector in wire to speaker beneath mirror triangle cover.

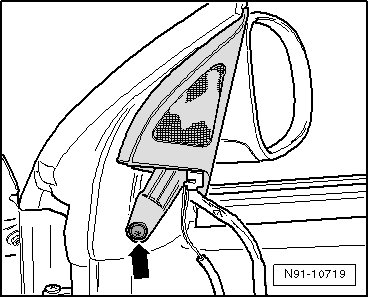

- Remove bolt - arrow -.






- Remove mirror triangle cover.

- If the plastic clip - 1 - remains on the cover after removing, then remove it and insert it in door at the installation location designed for it.






Otherwise mirror triangle cover can no longer be installed correctly.

Loudspeaker can only be replaced in conjunction with mirror triangle cover.

Installation

Install in reverse order of removal.
