Front Bass Speakers

Front Bass Speakers

• Removal and installation of left or right side speakers is identical.

Removal

Do the following before starting the procedure:

- Turn off the ignition and all electric consumers and remove the key.

The door trim panel must be removed first in order to remove a speaker.

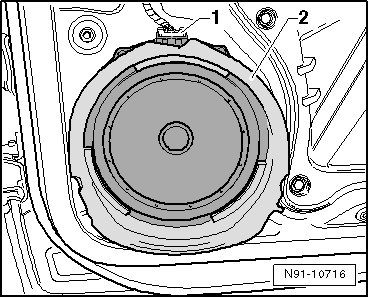

- Release locking mechanism of harness connector - 1 - and disconnect it. Remove rubber spacer ring - 2 - from speaker.






- Using a suitable drill, drill out rivets - arrows - and remove speaker.






• To prevent corrosion, ensure that all metal particles from drilling are removed from inside the door.

• If paint on door frame is damaged during drilling, touch-up immediately.

Installation

- When installing, secure new speaker with special pop rivets (note replacement part number!)

Make sure rubber spacer ring is fitted correctly on speaker.

Further installation is in the reverse sequence to removal.
