Crankshaft Seal, Transmission Side

Crankshaft Seal, Transmission Side

Special tools, testers and auxiliary items required

• Assembly Tool (T10122)

• Pulling Hook (T20143)

Removing

- Place the pulling hook (T20143/2) behind the sealing lip on the seal as illustrated.






- Support the pulling hook (T20143/2) on the sealing flange and pry out the seal in the - direction of the arrow -.

Installing






- Pull the seal - A - over the sleeve (T10122/1) onto the sleeve (T10122/2).

- Separate both sleeves.

- Then, place the sleeve (T10122/2) with a dry seal, onto the crankshaft journal.

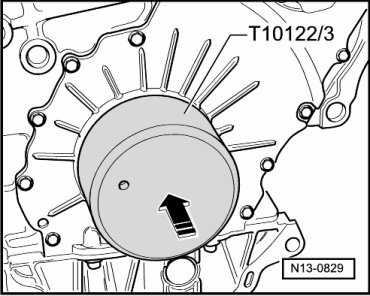

- Now, drive the seal into the sealing flange until seated using the assembly tool (T10122/3).
