Transmission Cooler: Description and Operation

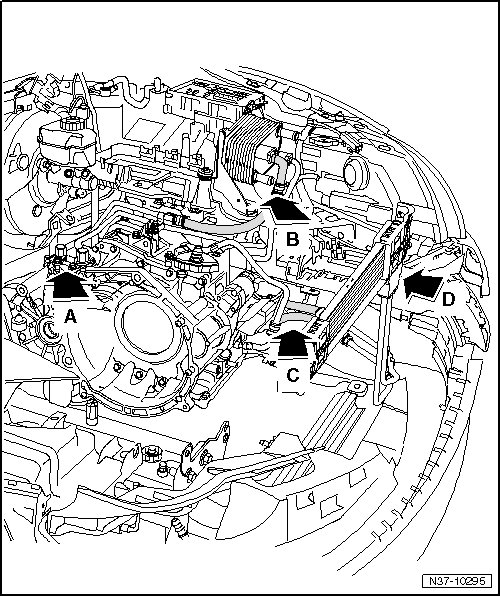

Transmission Fluid Lines, Cooler and Auxiliary Cooler Overview






A - => [ Transmission Fluid Lines to Transmission ]

B - => [ External Transmission Fluid Cooler ]

C - => [ Transmission Fluid Lines ]

D - => [ Auxiliary Transmission Fluid Cooler ]

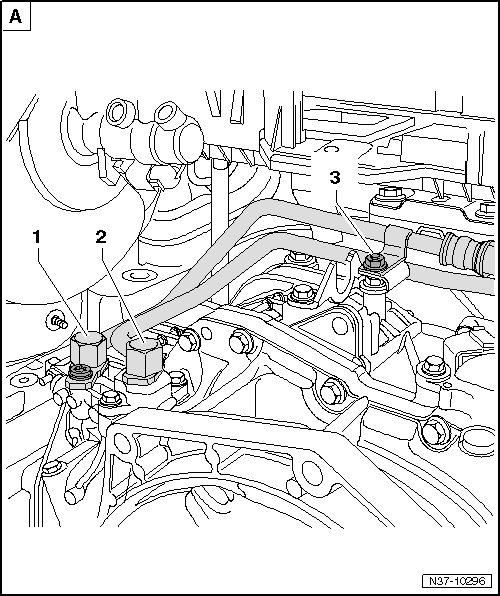

Transmission Fluid Lines to Transmission






1 Transmission Fluid Line

• 20 Nm

• Always replace the seal.

2 Transmission Fluid Line

• 20 Nm

• Always replace the seal.

3 Nut

• 9 Nm

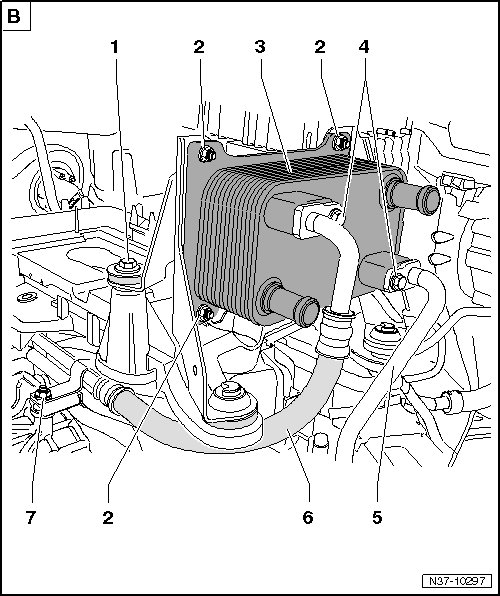

External Transmission Fluid Cooler






1 Bolt

• 8 Nm

2 Nut

• 9 Nm

3 External Transmission Fluid Cooler

4 Bolt

• 9 Nm

5 Transmission Fluid Line

• Supply line.

• Always replace the seal.

6 Transmission Fluid Line

• Return line.

• Always replace the seal.

7 Nut

• 9 Nm

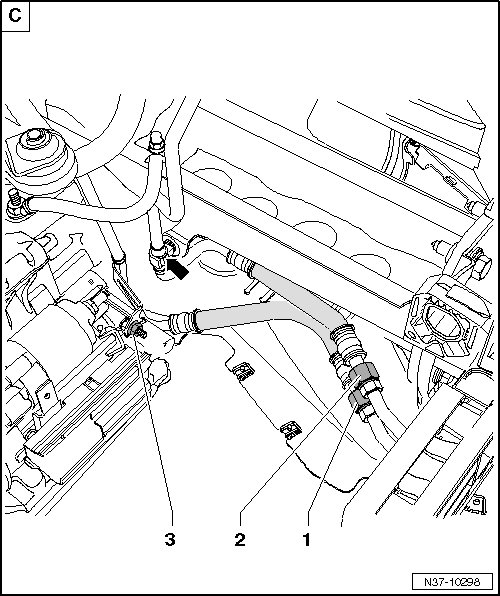

Transmission Fluid Lines






1 Transmission Fluid Line

• 25 Nm.

• Return line from the auxiliary cooler.

2 Transmission Fluid Line

• 25 Nm.

• Supply line for the auxiliary cooler.

3 Nut

• 9 Nm

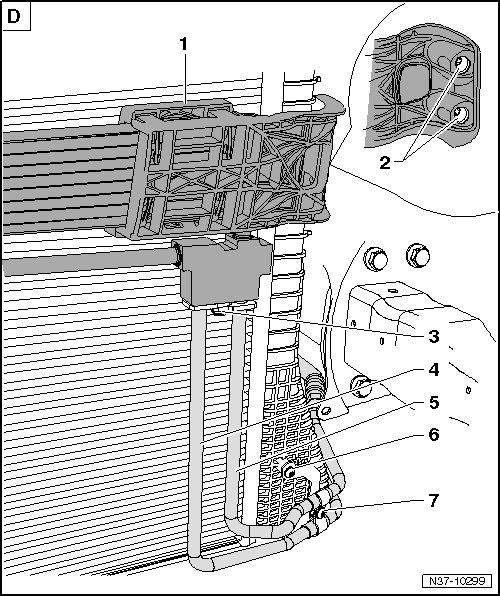

Auxiliary Transmission Fluid Cooler






1 Transmission Fluid Auxiliary Cooler

• Remove when installing and removing the front bumper cover.

2 Bolt

• 5 Nm

3 Bolt

• 9 Nm

4 Transmission Fluid Line

• Return line.

• Always replace the seal.

5 Transmission Fluid Line

• Supply line.

• Always replace the seal.

6 Bolt

• 5 Nm

7 Bolt

• 9 Nm
