Selector Mechanism Overview, through 02.09

Selector Mechanism Overview, through 02.09

Move the selector lever into the "P" position and set the parking brake before working with the engine running.

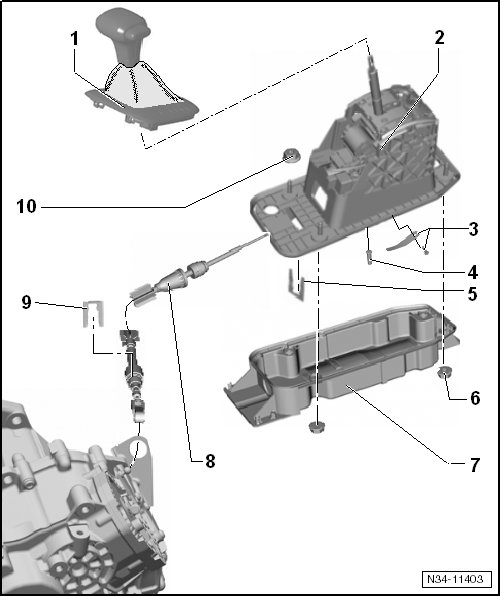

1 Selector Handle with Cover

• Do not remove the handle unnecessarily. For emergency release, only the cover needs the be removed. Refer to => [ Selector Lever, Manual Release ] Procedures.

• Pull the button past its pressure point before removing the handle. Secure the button with a tie strap or tape. This prevents the button from being pushed back into the handle accidentally.

• If the button is pushed in:

- Just before installing, pull the button out beyond the press point (sense this by touch).

2 Selector Mechanism with Selector Lever.

• Removing and installing, refer to => [ Selector Mechanism with Lever, through 02.09 ] Selector Mechanism with Lever, through 02.09.

3 Bolt with Spring

• 3 Nm

4 Pin

• Removing, refer to => [ Selector Lever Cable, through 02.09 ] Service and Repair.

• Do not lubricate.

5 Retainer

• Always replace after removing.

6 Nut

• 9 Nm

• Quantity: 4

7 Selector Housing

• With seal.

8 Selector Lever Cable

• Do not grease the cable.

• Removing and installing, refer to => [ Selector Lever Cable, through 02.09 ] Service and Repair.

• Checking, refer to => [ Selector Lever Cable, Checking ] Testing and Inspection.

• Adjusting, refer to => [ Selector Lever Cable, Adjusting ] Adjustments.

9 Retainer

10 Nut

• 8 Nm

• Quantity: 4
