Fluid Filter - A/T: Service and Repair

Transmission Fluid Filter

Removing

- Remove the transmission fluid pan. Refer to => [ Transmission Fluid Pan ] Service and Repair.

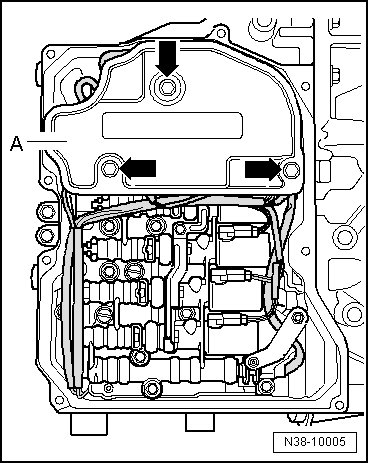

- Remove the transmission fluid filter bolts - arrows -.






- Remove the filter - A - from the valve body.

Installing

- Lightly coat the seals on the filter suction collar with transmission fluid.

- Replace the filter if the seals are loose or faulty.

- Install the filter - A - and tighten the bolts. Refer to => [ Fastener Tightening Specifications ] Fastener Tightening Specifications.






- Install the transmission fluid pan. Refer to => [ Transmission Fluid Pan ] Service and Repair.

- Fill with fluid and check the level. Refer to => [ Transmission Fluid Level, Checking and Filling ] Transmission Fluid Level, Checking and Filling.
