Cell Phone - Bluetooth(R)/UHV High (9W3) Overview
91 09 23Sept. 24, 2009
2021523
Bluetooth, UHV High (9W3) Overview

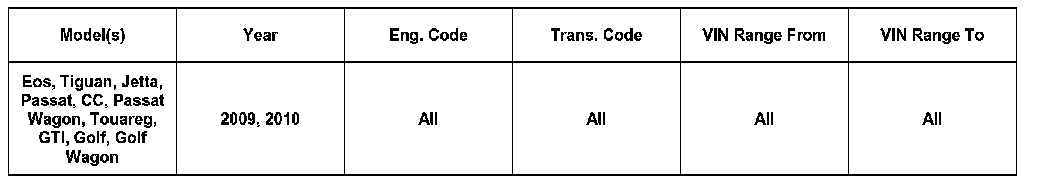

Vehicle Information
Condition
Technical Background
To provide an overview of:
- Operation
- Functionality
- MY 2009 Passat Sedan/Wagon functionality
Production Solution
No production change required.
Service
TIP: Refer to cell phone manufacturer for detailed Bluetooth(R) phone pairing setup instruction.

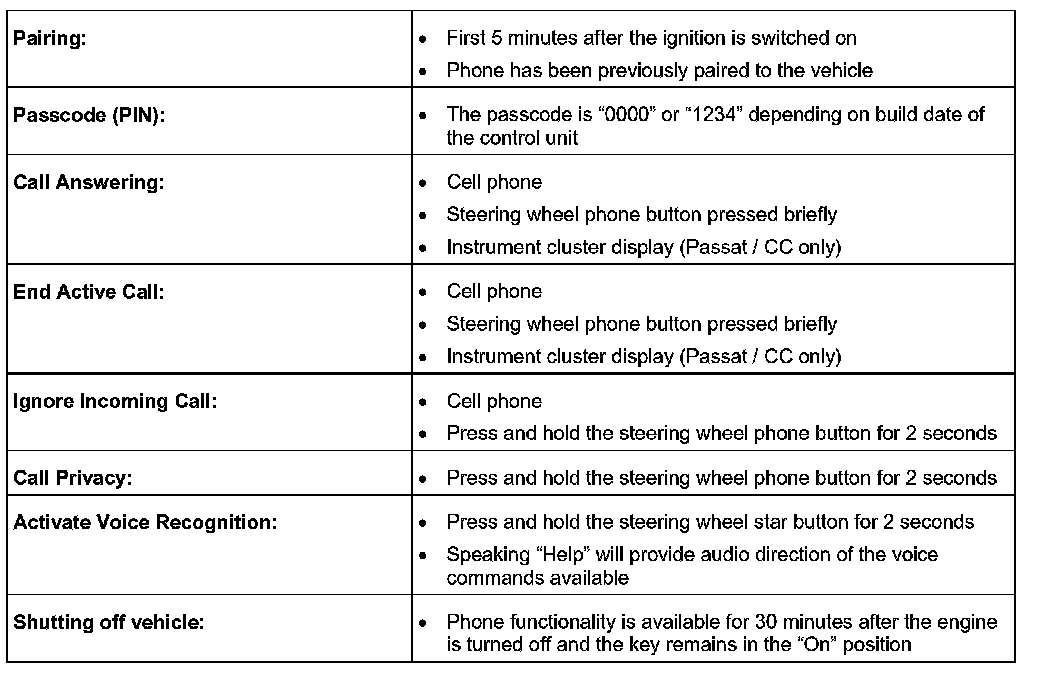

Operation

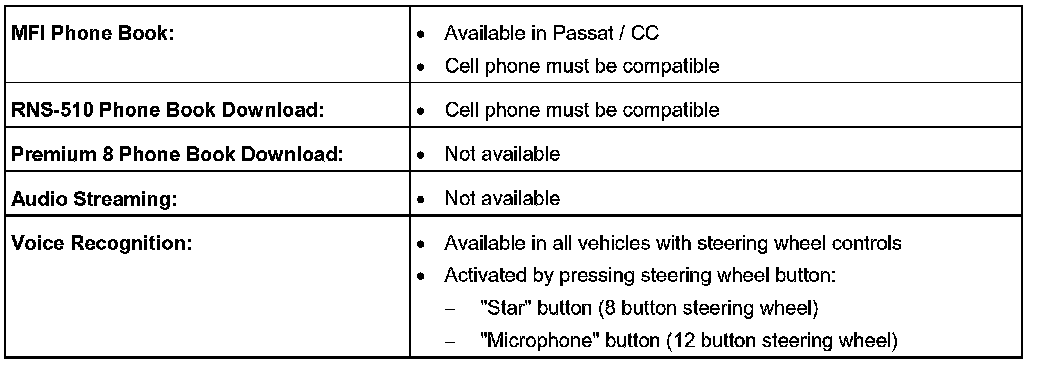

Functionality
NOTE:
If the vehicle is equipped with RNS-510, it may have a "phone" or "mute" button depending on the build date. How the button operates is dependant on the coding of the Bluetooth module.
MY 2009 Passat Sedan/Wagon Functionality
MY 2009 Passats equipped with 8 button steering wheel controls may experience a lack of functionality for voice recognition and phone book download in the MFI.
Warranty
Information only.
Upgrading a vehicle to UHV High Bluetooth is not supported.
Required Parts and Tools
No Special Parts required.
No Special Tools required.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. for the latest information.
