Cell Phone - Bluetooth(R) UHV High (9W3) Overview
91 09 31Dec. 9, 2009
2021523, supersedes T.B. Group 91 number 09-23 dated Sept. 24, 2009 to include compatible phone list.

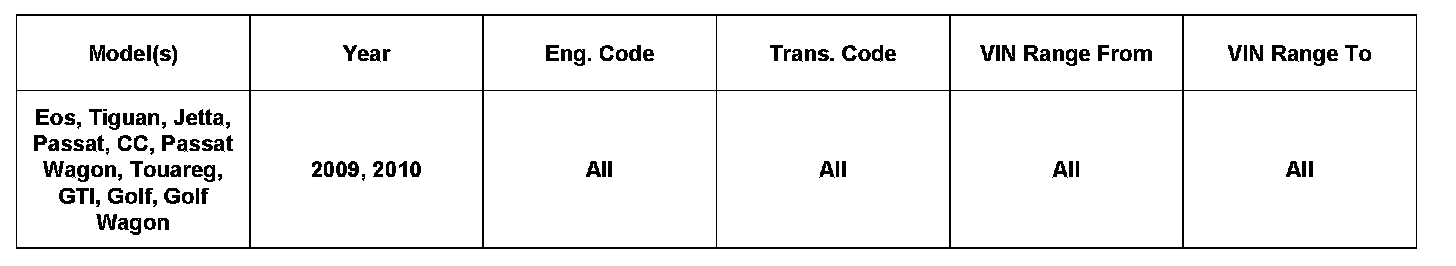

Vehicle Information
Condition
Bluetooth(R), UHV High (9W3) Overview
Technical Background
To provide an overview of:
^ Operation
^ Functionality
^ MY 2009 Passat Sedan / Wagon functionality
^ Language preference change for voice recognition
Production Solution
No production change required.
Service
Tip:
Refer to cell phone manufacturer for detailed Bluetooth� phone pairing setup instruction.

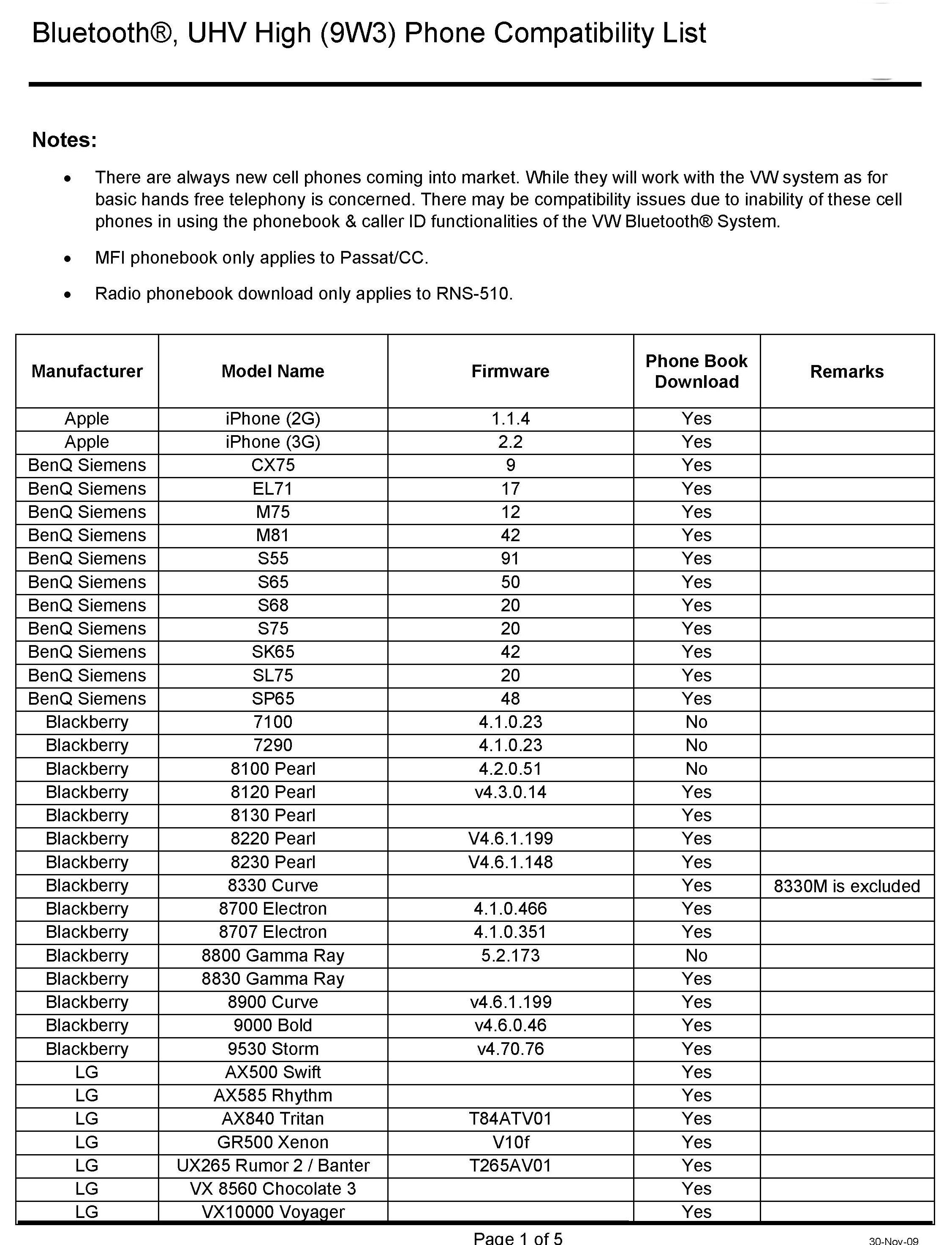

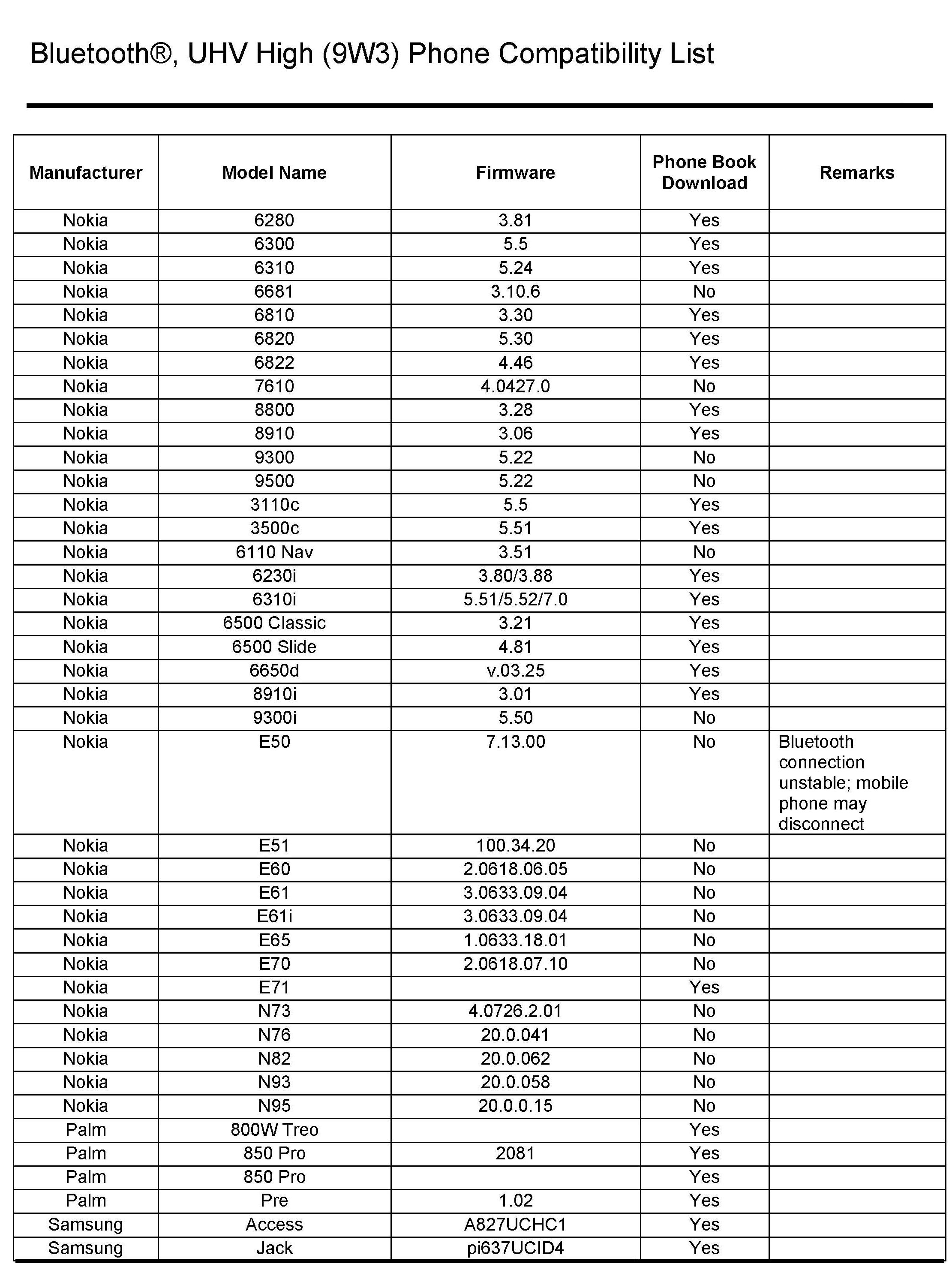

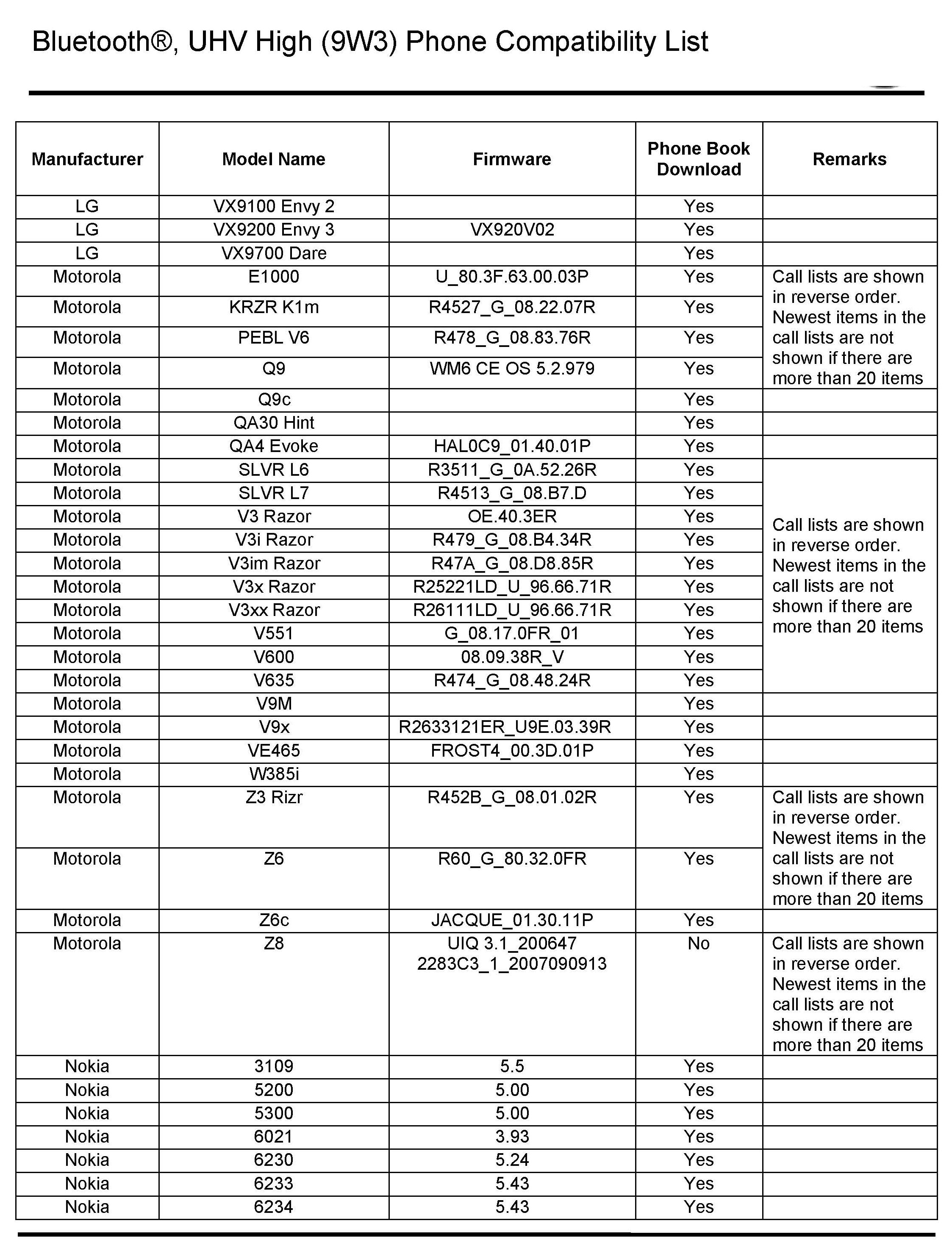

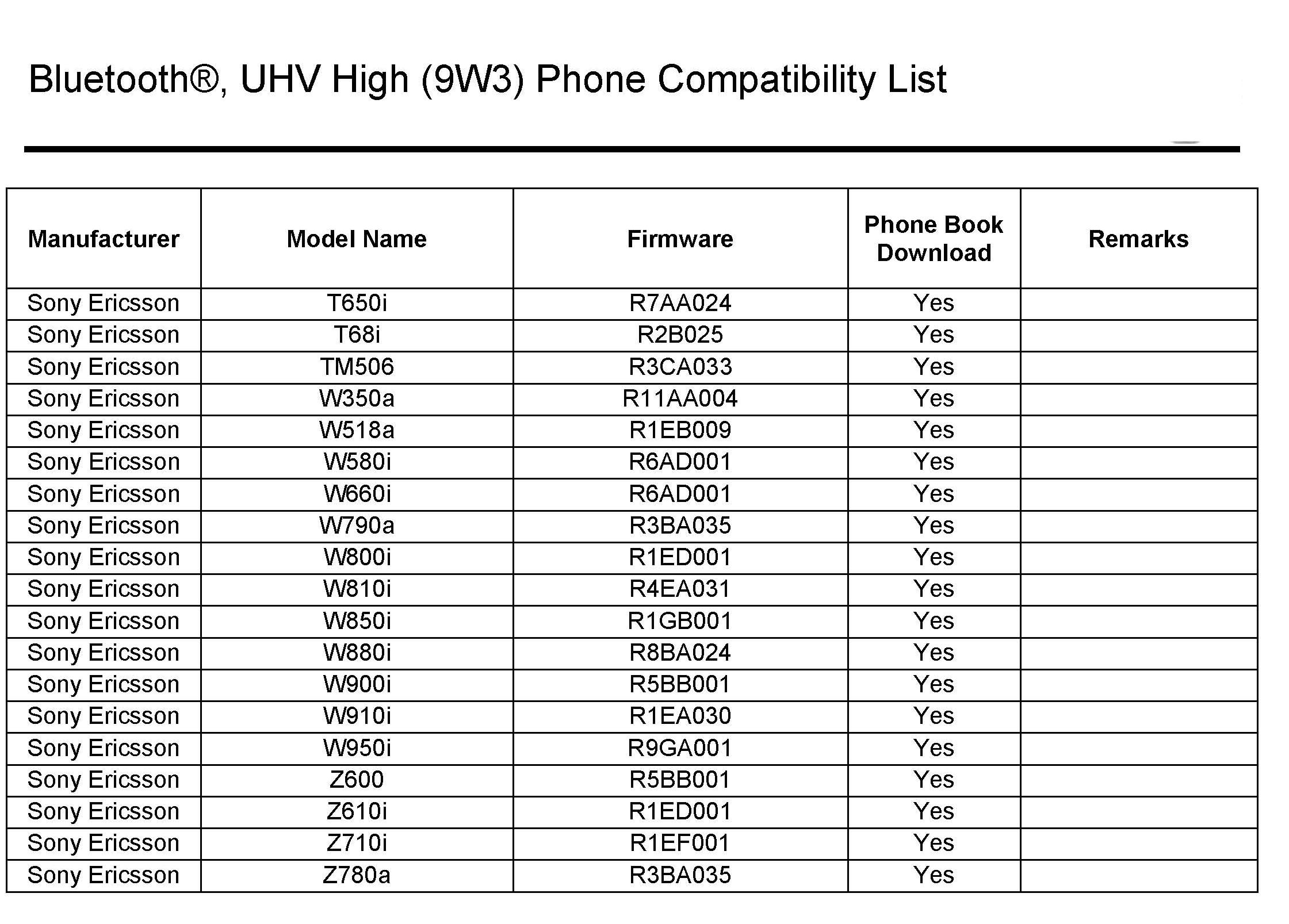

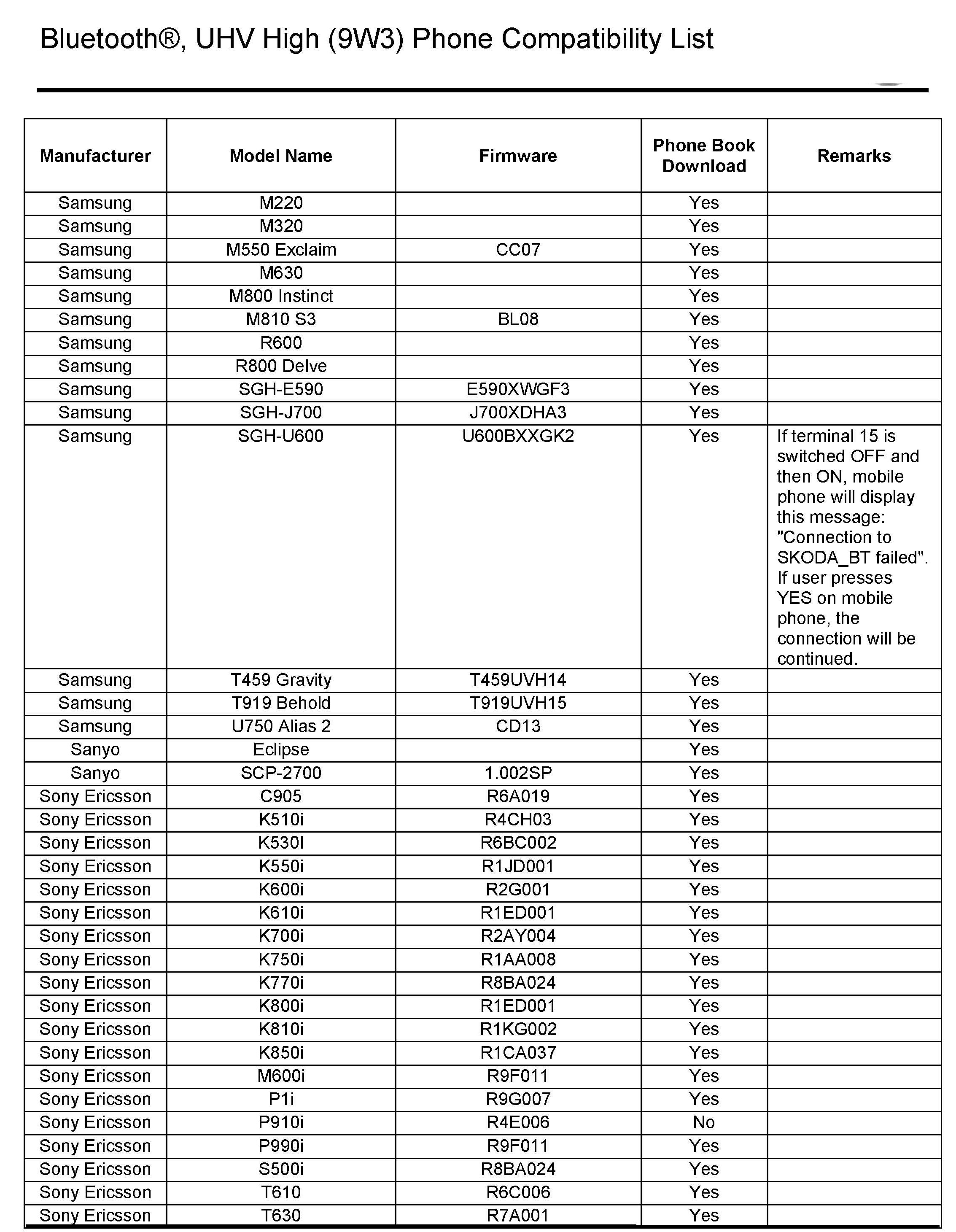

See attachment for list of compatible phones.

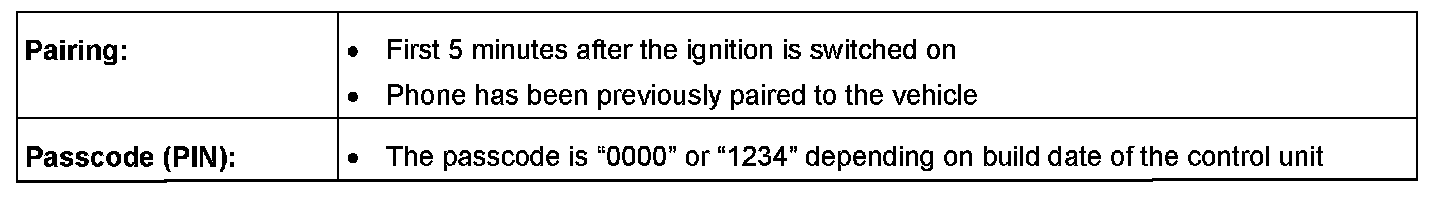

Operation

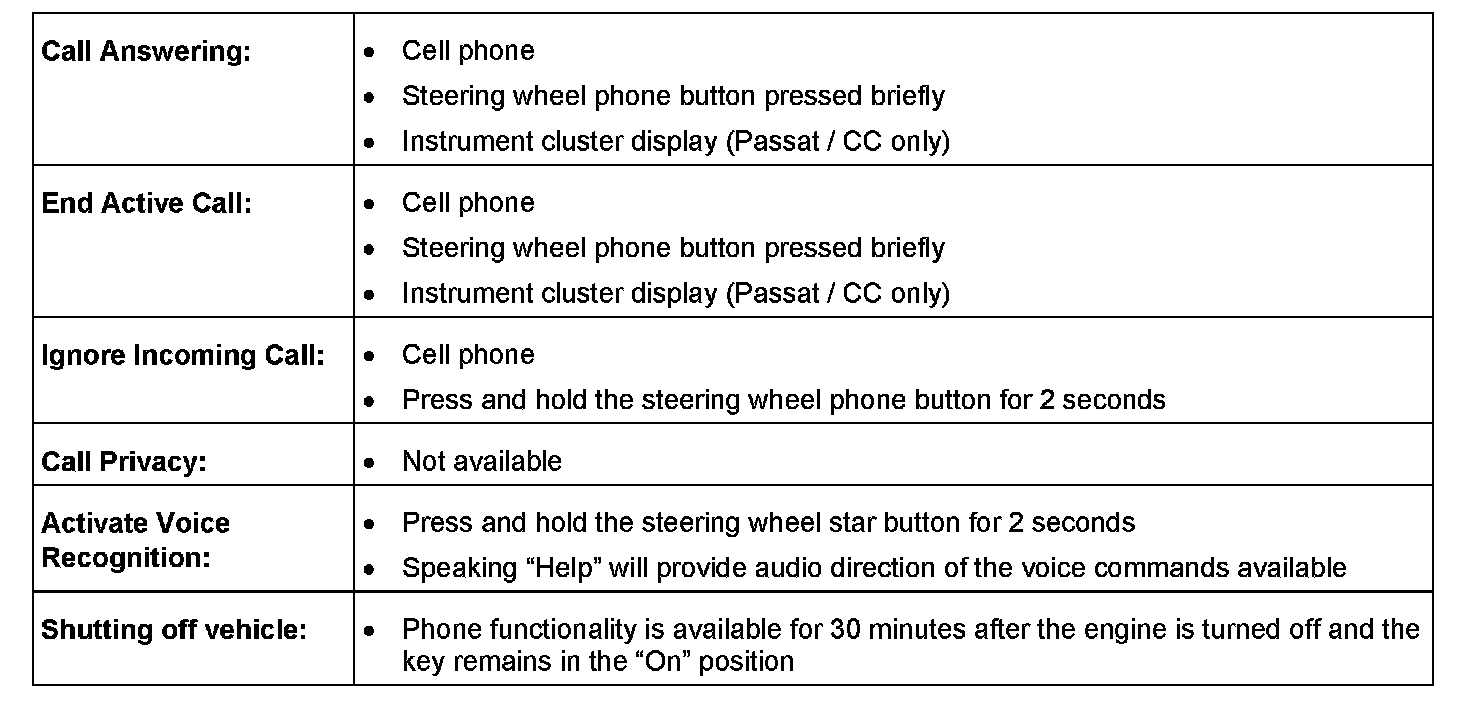

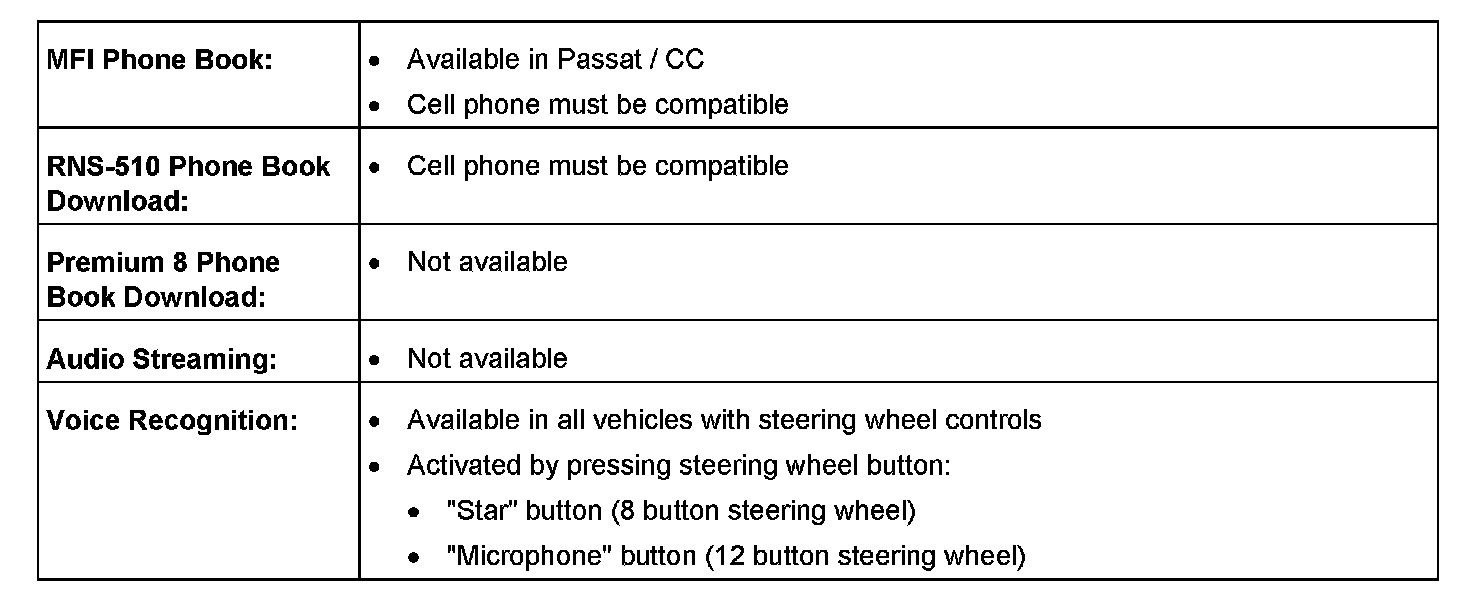

Functionality
Tip:
If the vehicle is equipped with RNS-510, it may have a "phone" or "mute" button depending on the build date. How the button operates is dependant on the coding of the Bluetooth module.
MY 2009 Passat Sedan / Wagon Functionality
MY 2009 Passats equipped with 8 button steering wheel controls may experience a lack of functionality for voice recognition and phone book download in the MFI. Please contact the Volkswagen Technical Assistance for information.
Language Preference Change for Voice Recognition
Tip:
This not a warrantable concern.

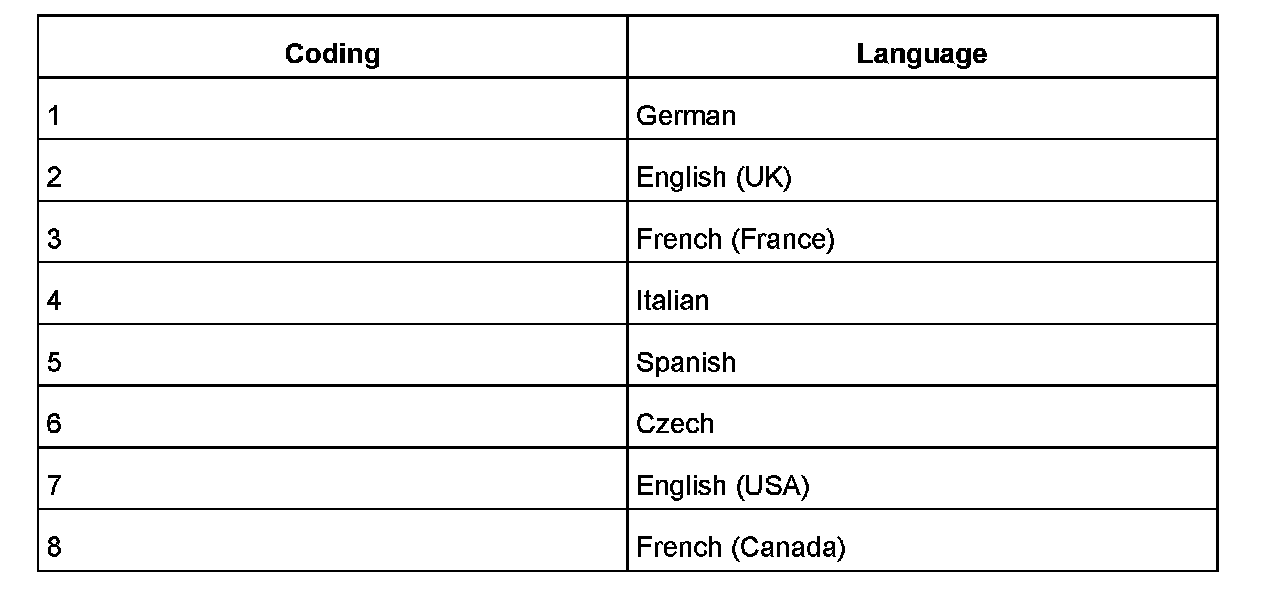

Coding Table
Tip:
Coding will involve changing the second to last digit of the short coding.
Example: To change from English to French (Canada). The coding will change from 1077 to 1087.
Procedure
^ Determine coding based on table above
^ Connect VAS tester
^ Select Vehicle Self-Diagnosis
^ Select On Board Diagnostics (OBD)
^ Select 77 Telephone
^ Select 007 Coding (Service $1A)
^ Enter the code and select "Q" to confirm
^ Exit Vehicle Self-Diagnosis
^ Confirm operation of component
Warranty
Information only.
Upgrading a vehicle to UHV High Bluetooth is not supported.
Required Parts and Tools
No Special Parts required.
No Special Tools required.
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal.
Always check with your Parts Dept. and Repair Manuals for the latest information.
