Antitheft System - Comfort System Central Control Module
96 08 07
Nov. 5, 2008
2017731 Supersedes T.B. Group 96 Number 08-03 dated May 16, 2008 due to additional models year, modified content and a NOTE with regards to the tester screen saver and power settings in accordance to Special Tools and Equipment - Service Information Document # VSE-08-18.

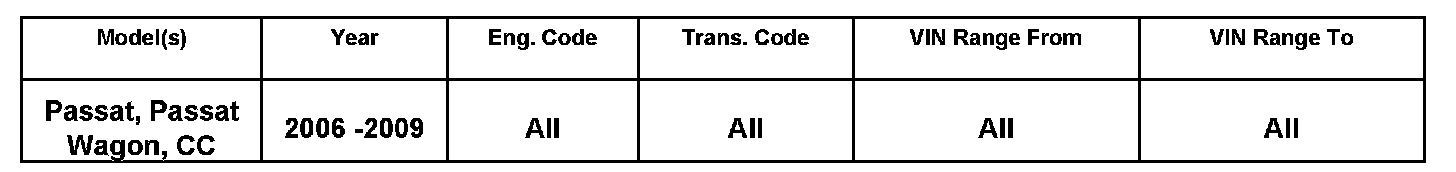

Vehicle Information
Condition
Comfort System Central Control Module -J393-, Immobilizer System, Replacement
Technical Background
Please review entire bulletin to become familiar with procedure prior to performing repair.
Properly diagnosing and servicing the immobilizer system can be challenging. This technical bulletin is designed to assist with adaptation for comfort system central control module -J393- replacement ONLY.
Tip:
Refer to technical bulletin 2016689 to replace electronic steering column lock module -J764- and comfort system central control module -J393- together.
Production Solution
Not applicable.
Service
Service Sections:
Prerequisites
Replacement of Comfort System Central Control Module -J393-
Additional Functions
Prerequisites
The Electronic Steering Column Lock Module -764- must be replaced along with the -J393- if ELV is an index "D" or below. This only applies to MY 2006 & early MY 2007 vehicles. If this is applicable, refer to technical bulletin 2016689.
ELV can only be found in GFF fault log. ELV is part number 3C0 905 861 + index. If a GFF fault log is unable to be obtained, this can be found by going directly in to Immobilizer via address word 25 using flash to pass to obtain "15 Power". This must be done with the original -J393-.
Tip:
ELV is a diagnostic term for ESCL.

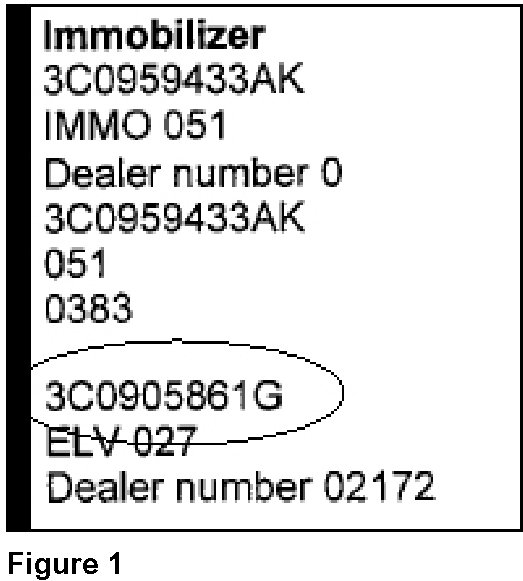

Figure 1:
NOTE:
This information was previously explained in Technical Bulletin 2011776.
^ VAS 5051 with Brand CD version 14.88.00 or higher. VAS 5052 may not be used as the scan tool. This is due to the need to have an external power source for the scan tool. A 110 V AC connection for the scan tool must be used as battery voltage is critical.
^ Internet connection within reach of the vehicle.
^ Retrieve, if possible, long coding of comfort system central control module -J393- and short coding of ABS control module -J104-.
Tip:
A long coding job aid can be found on ServiceNet under Support for additional information on how to retrieve coding.

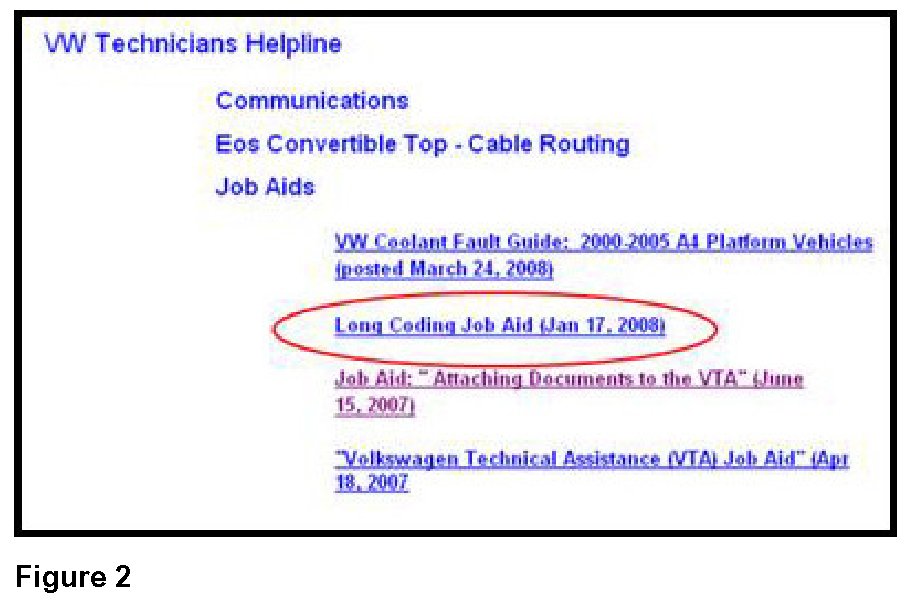

Figure 2:
NOTE:
Prior to launching VAS-PC application and starting control module update process, confirm tester screen saver and power settings in accordance with Special Tools and Equipment - Service Information Document # VSE-08- 18. Failure to do so may result in the tester entering power save mode during data transfer, and subsequent control module failure.
Replacement of Comfort System Central Control Module -J393-
NOTE:
Notify customer that all vehicle keys MUST be present for adaptation purposes.
^ Disconnecting scan tool during a test plan may result in comfort system central control module -J393- and/or - J764- failure. Replacement of failed components a second time will be dealer responsibility.
^ The battery must be tested using the Midtronics tester before the adaption process begins. A failed battery must be replaced before this procedure is performed.
^ Disconnect battery.
^ Replace Comfort Convenience Module. See Repair Manual Group 57 Front Doors, Central Locking System.
^ Connect battery.
^ Connect the Midtronics In-Charge 940 (INC-940) tester/charger to maintain voltage of 12.5 V - 14.5 V.
Tip:
Pull in and retain the turn signal lever (Flash to Pass). This initiates CanBus communication control module. Communication will be limited to the immobilizer at this time.
^ Perform GFF Collection Service.
^ Select "Go to" and "Function / Component Selection".
^ Select "Chassis -> Electrical System (Repair Group 01; 27; 90 to 97) -> 01 Systems capable of self-diagnosis - > Immobilizer -> Immobilizer functions -> Adapting anti-theft immobilizer".

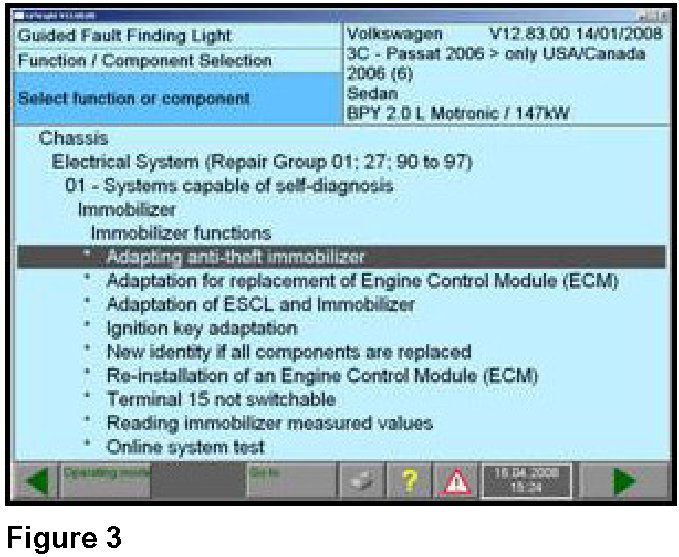

Figure 3:
Key points to remember while performing adaptation
^ Key position is critical to performing adaptation. Follow test plan carefully.
^ Country code "444" must be used for United States vehicle and "999" used for Canadian vehicles. Do NOT use "USA" or "Canada" or any other variation except for what is stated.
^ DO NOT attempt to start vehicle until online connection is terminated.
^ Once adaptation is complete and the online connection has been completed, verify that vehicle starts with each key adapted.
^ Once keys are adapted, proceed to Additional Functions to complete repair.
Additional Functions
Comfort Control Module -J393- De-activation of Factory Mode
^ Exit completely out of GFF and then re-enter GFF (Necessary for scan tool to identify VIN for online coding).
^ Perform "GFF Collection Service".
^ Select "Go to" and "Function / Component Selection".
- Select "Chassis -> Body Collision Repair (Repair Group 01; 50 to 77) -> Convenience system -> Functions - Central CM for convenience system -> Comfort System Central CM deactivating factory mode -J393-".

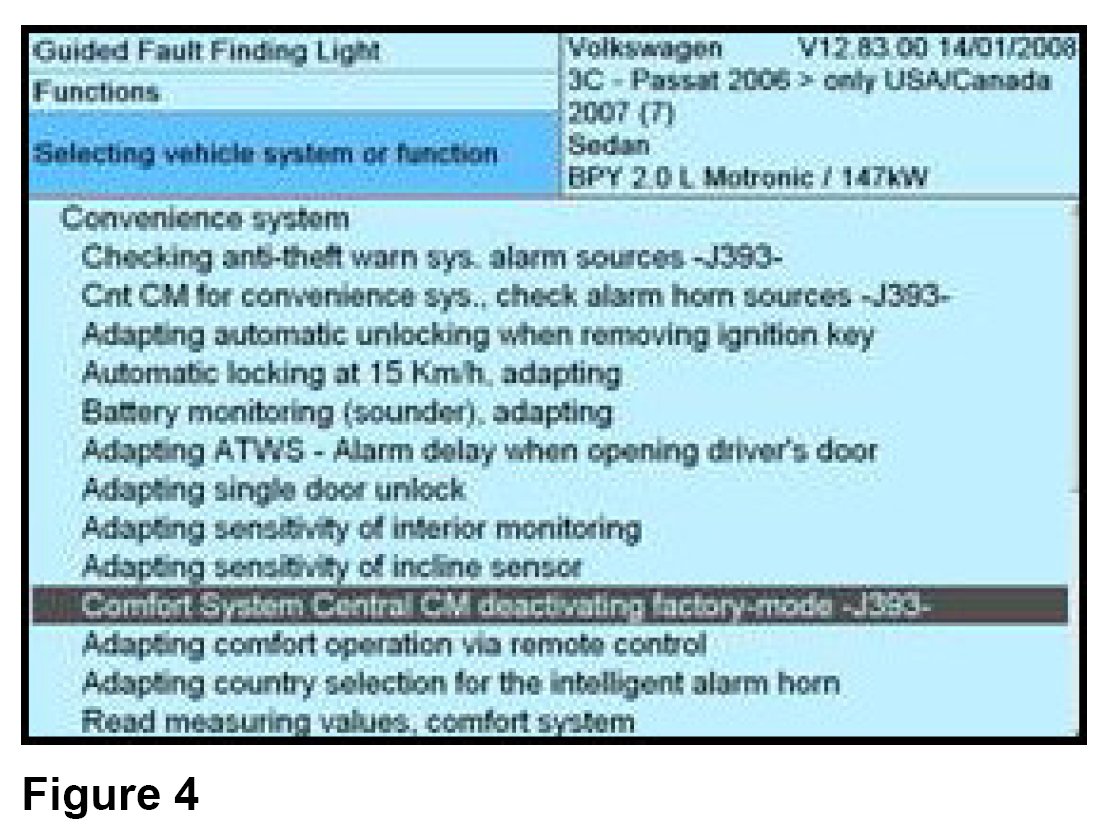

Figure 4:
- Perform function test.
Once the function is complete, Comfort System Central Control Module -J393- will be out of factory mode.
Comfort System Central Control Module -J393- Coding

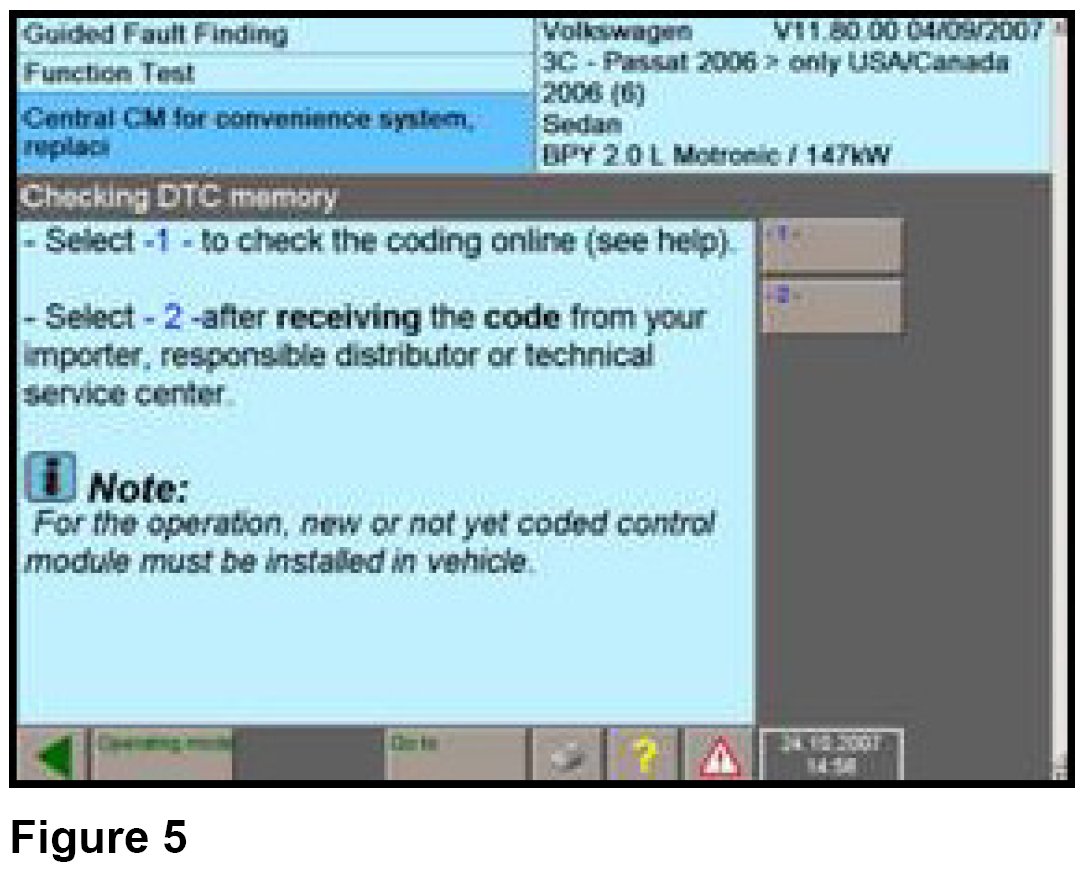

Figure 5:
^ Select "Chassis -> Body Collision Repair (Repair Group 01; 50 to 77) - > Convenience system -> Functions - Central CM for convenience system -> Replacing/coding Comfort System Central Control Module - J393-".
- Select "Yes" when questioned if you want to replace or code control module.
^ Select option "1" to use online coding or option "2" if you were able to retrieve your coding before parts replacement.
Tip:
A screen may appear stating that the coding was not accepted, but will show the coding entered in manually using option "2".
^ Select "Done" to accept coding.
Radio - Remote Control (Key) - Adapting
^ Select "Chassis -> Body Collision Repair (Repair Group 01; 50 to 77) -> Convenience system -> Functions - Central CM for convenience system -> Adapting Keys with Radio-remote Control -J393-"
^ Perform the function test to adapt the remotes
NOTE:
ALL keys MUST be present to perform procedure. If all keys are not present, procedure will have to be performed again once all keys are present.
Tire Pressure Monitoring System - Coding (If equipped)
^ Select "Operating Mode > Vehicle Self Diagnosis > On Board Diagnostic (OBD) > 65 - Tire Pressure Monitoring > 007 Coding (Service $1A)".
^ Enter in "100100" and select "Q".
Tire Pressure Monitoring System - Adapting (If equipped)
Tip:
TPMS adaptation is necessary as the default factory setting for the TPMS is 5.5 Bar for each wheel.
^ Select "Back Arrow".
^ Select "Access Authorization".
^ Enter "1503" and select "Q".
^ Select "Back Arrow" 3 times.

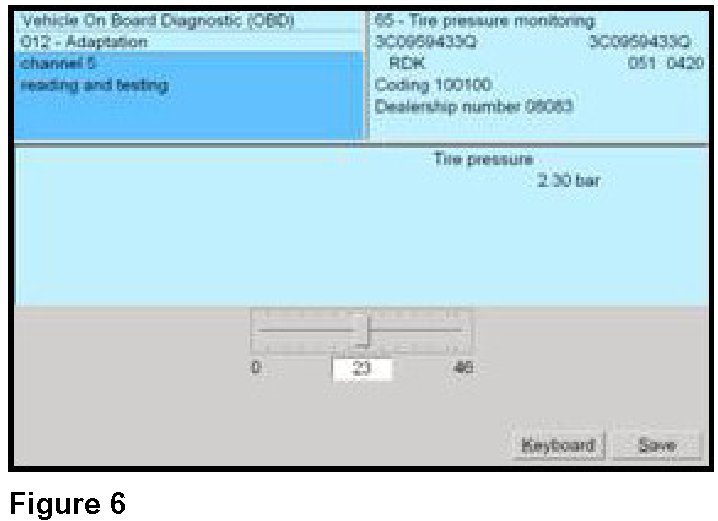

^ Select "Adaption".
^ Enter "5" and select "Q".
NOTE:
Observe tire pressure rating on door label. Pressure value MUST be entered in Bar. Calculate BAR by dividing the KPA by 10.
You do not need to enter access code for remaining 3 tire adaptations.
^ Enter the appropriate tire pressure in Bar from label and select "Save" then "Accept".
^ Repeat tire pressure adaptation for channels 6-8.
^ Once complete, exit GFF.
Assembly
^ Re-install any cosmetic panels.
Final Steps
^ Perform functional check of doors, remotes, trunk/hatch operations.
- Perform a test drive to confirm proper operation of the vehicle.

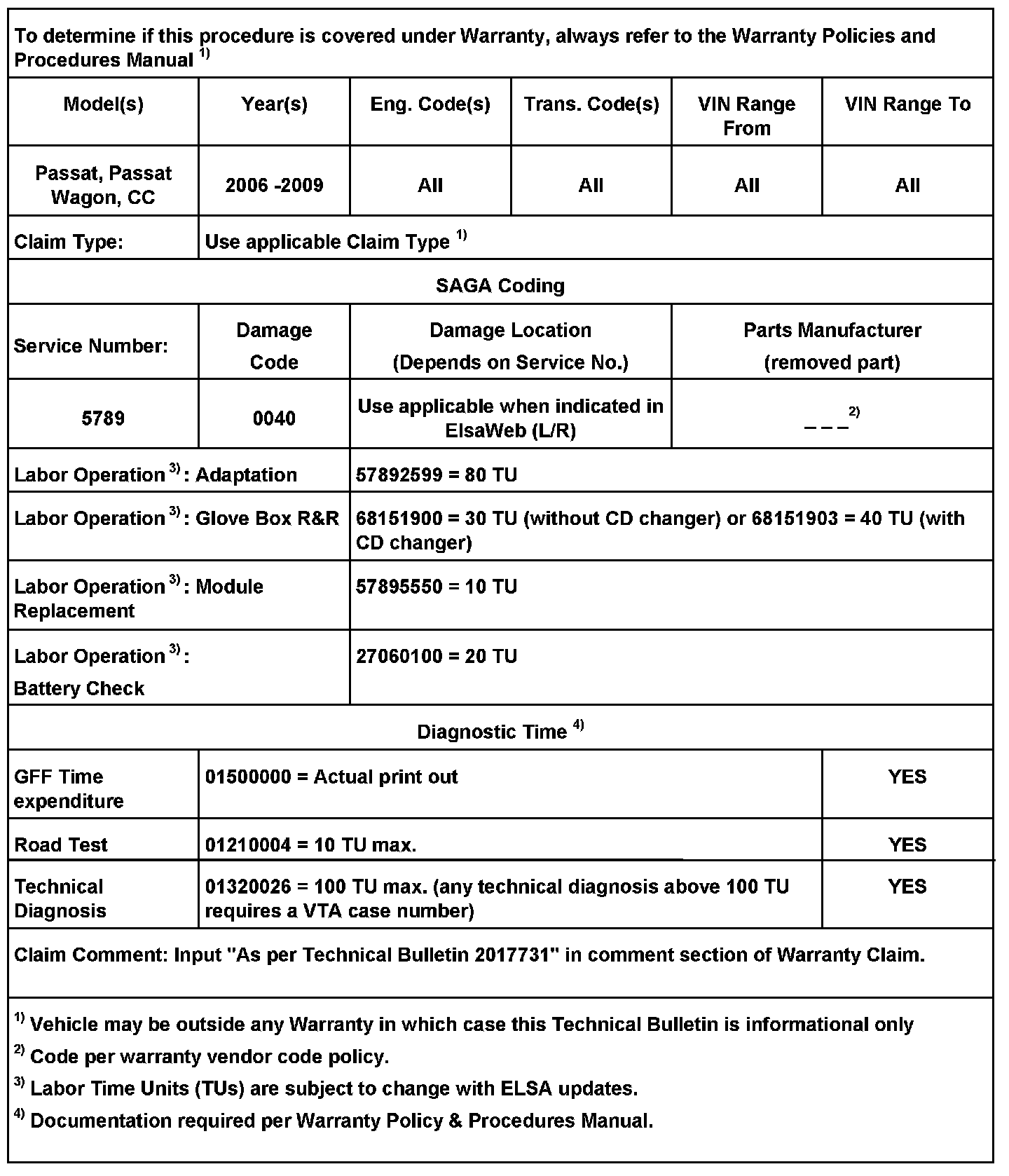

Warranty

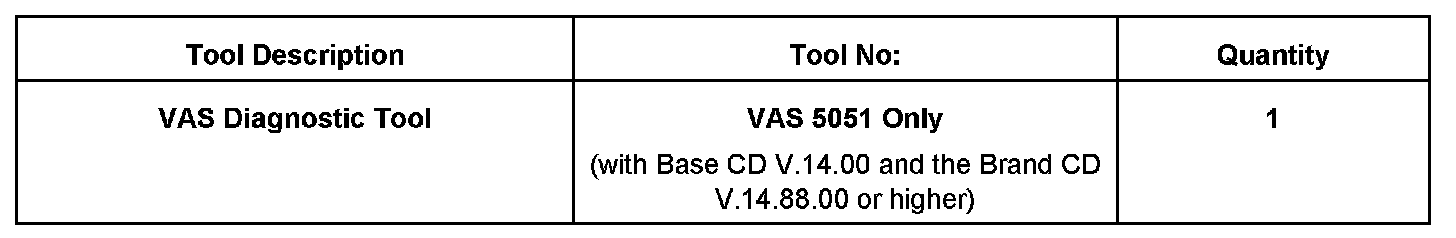

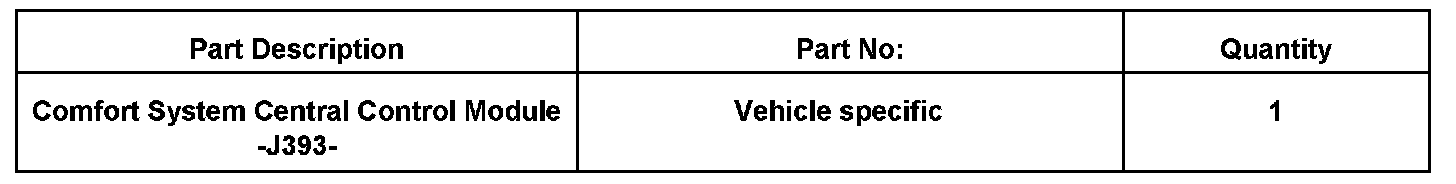

Required Parts and Tools
Additional Information
All part and service references provided in this Technical Bulletin are subject to change and/or removal. Always check with your Parts Dept. and Repair Manuals for the latest information.
