AWD

Shock Absorber

• Shock absorber, with adaptive chassis DCC disassembly and assembly. Refer to => [ Shock Absorber, with Adaptive Chassis DCC ] Shock Absorber, with Adaptive Chassis DCC.

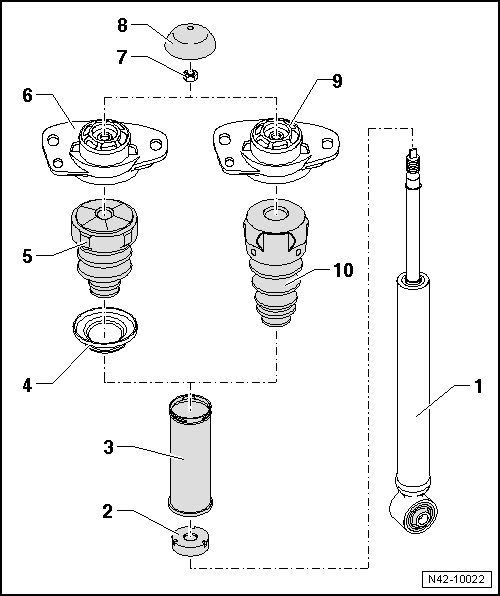

1 Shock Absorber

• Removing and installing, refer to => [ Shock Absorber ] Shock Absorber.

• There are different suspension versions. Refer to => [ Vehicle Data Label ] Vehicle Data Label.

2 Cap

3 Protective Pipe

4 Support Ring

• Allocation, refer to the Parts Catalog.

5 Jounce Bumper

• For the shock absorber with a support ring - item 4 -.

• Allocation, refer to the Parts Catalog.

6 Shock Absorber Mounting

• For the shock absorber with a support ring - item 4 -.

• Allocation, refer to the Parts Catalog.

7 Nut

• M10 x 1.0

• 25 Nm

• Always replace if removed.

8 Protective Cap

9 Shock Absorber Mounting

• For the shock absorber without a support ring - item 4 -.

10 Jounce Bumper

• For the shock absorber without a support ring - item 4 -.

Special tools, testers and auxiliary items required

• Torque Wrench (40-200 Nm) (V.A.G 1332)

• Shock Absorber Set (T10001)

Loosening and Tightening the Shock Absorber Mounting Nut





1 Ratchet (commercially available)
2 Socket wrench 21 mm (T10001/9)
3 Ratchet (T10001/11)
4 Socket wrench 21 mm (T10001/1)

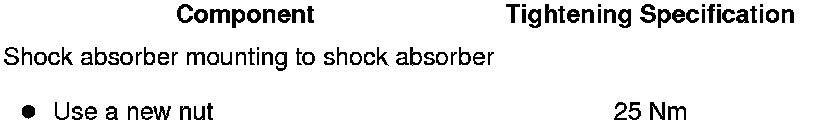

Tightening Specification
