Stabilizer Bar: Description and Operation

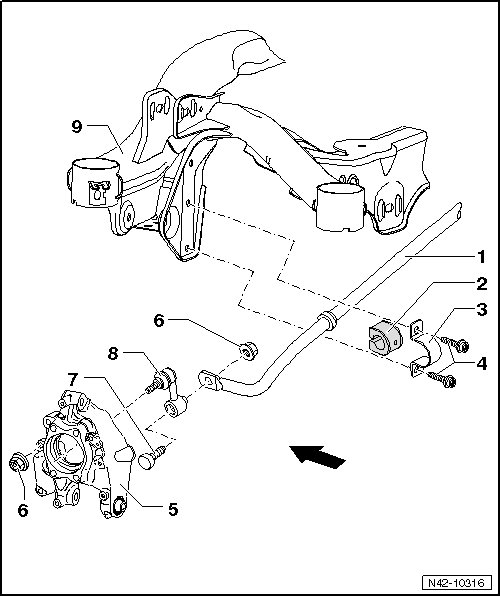

Stabilizer Bar

The - arrow - points in the driving direction.






1 Stabilizer Bar

• There are different suspension versions. Refer to => [ Vehicle Data Label ] Vehicle Data Label.

• Removing and installing, refer to => [ Stabilizer Bar ] Stabilizer Bar.

2 Rubber Isolator

• Always replace the isolators on both sides of the vehicle.

3 Clamp

4 Bolt

• M8 x 30

• 25 Nm + an additional 90° (1/4) turn.

• Always replace if removed.

5 Wheel Bearing Housing

6 Nut

• 45 Nm

• Self-locking

• Always replace if removed.

7 Bolt

• Always replace if removed.

8 Coupling Rod

• Connects the stabilizer bar to the trailing arm and wheel bearing housing.

9 Subframe
