Reset Procedure

Clock, Setting

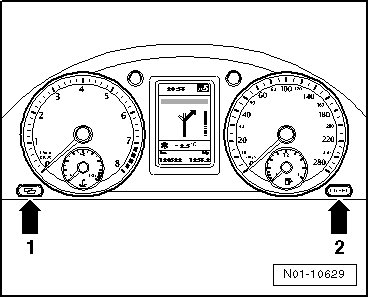

Setting the clock via the instrument cluster: Passat from MY 2006






- Press the left button - 1 - to set the hour. Press button only briefly to advance by one hour.

- Press the right button - 2 - to set the minutes. Press button only briefly to advance by one minute.

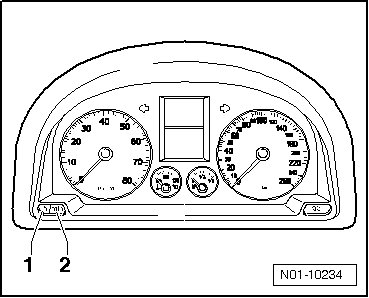

Setting the clock via the instrument panel: Passat from MY 2009






- Press the button - 1 - to activate the hour display.

- Press the button - 2 - to set the correct hour.

- Repeat the same procedures to set the minute.

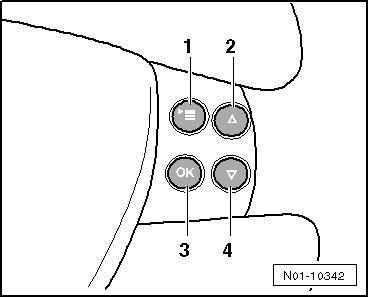

Setting the clock using the buttons on the multifunction steering wheel: Passat from MY 2006






- Switch ignition on.

- Press button - 1 - until "Settings" menu appears.

- Then select menu item "Clock" with buttons - 2 - and - 4 -.

- Confirm selection with button - 3 -.

- If "Hour" is marked, marked menu item is located between both horizontal lines, confirm again with button - 3 - and set correct hour with buttons - 2 - and - 4 -.

- Confirm again with button - 3 - and change to minute setting which is done the same as when setting the hour.

- You can leave the menu again with button - 1 -.

- Switch ignition off.

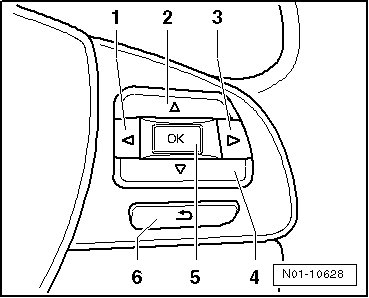

Setting the clock using the buttons on the multifunction steering wheel: CC from MY 2009






- Press the button - 5 - to activate the multifunction display.

- Press the button - 3 - until you reach the "settings" menu. Press the button - 5 - to confirm.

- Select "clock time".

- Use the button - 4 - to change the "hour". Press the button - 5 - to confirm.

- Now set the "hour" with the buttons - 2 - and - 4 -. When finished, press the button - 5 - to confirm.

- Repeat the same process to set the "minutes".

- Press the button - 6 - to return to the "main menu".

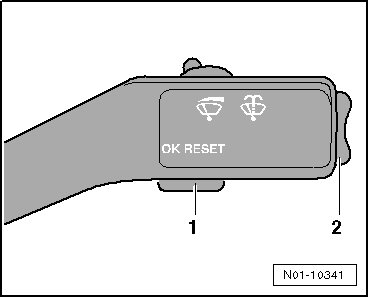

Setting the clock using the buttons on the windshield wiper lever






- Switch ignition on.

- Press button - 2 - for 2 seconds to go to main menu.

- Select "Settings" menu with button - 2 - and confirm with button - 1 -.

- Select "Clock" menu with button - 2 - and confirm with button - 1 -.

- Now mark menu time "Hours" by pressing button - 1 -, set correct hour with button - 2 - and then confirm with button - 1 -.

- Do the same with menu item "Minutes".

- You can leave the "Settings" menu using menu item "back".

- Now select "MFD" as actual display and confirm with button - 1 -.

- Switch ignition off.

• Make sure each vehicle key is set to daylight saving time or winter time. Go to the multifunction display, under the clock menu, to find the season settings.
