Heater and A/C Unit, Manual A/C System

Heater and A/C Unit, Manual A/C System

- Remove the heater and A/C unit. Refer to => [ Heater and A/C Unit, through 30 October 2008 ] Heater and A/C Unit, through 30 October 2008.

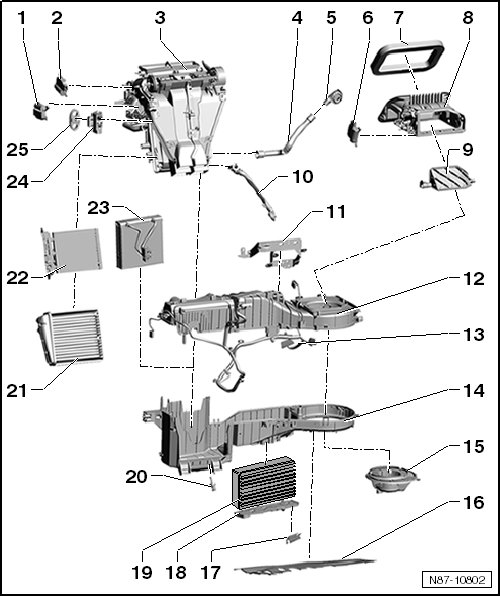

1 Temperature Regulator Door Motor (V68)

• With front air distribution door motor position sensor (G92)

• Removing and installing, refer to => [ Temperature Regulator Door Motor V68 ] Temperature Regulator Door Motor V68.

2 Air Distribution Flap Motor (V428)

• With the front air distribution door motor position sensor (G645)

• Removing and installing, refer to => [ Air Distribution Door Motor V428, Passat CC from MY 09 and CC from MY 10 ] Air Distribution Door Motor V428, Passat CC from MY 09 and CC from MY 10.

3 Junction Box

4 Hose for Glove Compartment Cooling

• Removing and installing, refer to => [ Glove Compartment Cooling ] Glove Compartment Cooling.

5 Valve for the Glove Compartment Cooling

• Removing and installing, refer to => [ Glove Compartment Cooling ] Glove Compartment Cooling.

6 Recirculation Door Motor (V113)

• With the recirculation door motor position sensor (G143)

• Removing and installing, refer to => [ Recirculation Door Motor V113 ] Recirculation Door Motor V113.

7 Seal

8 Air Intake Housing

9 Air Recirculation Door

10 Condensation Water Drain Hose with Valve

• Removing and installing, refer to => [ Condensation Drain Hose ] Service and Repair.

• Checking, refer to => [ Condensation Drain Hose ] Service and Repair.

11 Bracket

12 Evaporator Housing Upper Section

• Evaporator housing, disassembling and assembling, refer to => [ Evaporator Housing ] Evaporator Housing.

13 Wiring Harness For Heater And Air Conditioner

14 Lower Section Of Evaporator Housing

• Evaporator housing, disassembling and assembling, refer to => [ Evaporator Housing ] Evaporator Housing.

15 Fresh Air Blower (V2)

• Removing and installing, refer to => [ Fresh Air Blower V2 ] Service and Repair.

16 Footwell Trim Panel For The Front Passenger Side

17 Fresh Air Blower Series Resistor With Fuse (N24)

• Removing and installing, refer to => [ Fresh Air Blower Series Resistor with Fuse N24 ] Service and Repair.

18 Cover

• For dust and pollen filter

19 Dust and Pollen Filter

• Removing and installing, refer to => [ Dust and Pollen Filter ] Service and Repair.

20 Evaporator Temperature Sensor (G308)

• Removing and installing, refer to => [ Evaporator Temperature Sensor G308 ] Service and Repair.

21 Heater Core

• Removing and installing, refer to => [ Heater Core ] Heater Core.

22 Auxiliary Heater Heating Element (Z35)

• Not applicable to the US or Canada

23 Evaporator

• Removing and installing, refer to => [ Evaporator ] Service and Repair.

24 Expansion Valve

• Removing and installing, refer to => [ Expansion Valve ] Expansion Valve.

25 Seal
