Valve Guide Seal: Service and Repair






Valve Stem Seals

(with the cylinder head installed)

Special tools, testers and auxiliary items required

Spark Plug Removal Tool (3122 B)

Valve Seal Removal Tool (3364)

Valve Stem Seal Driver (3365)

Adapter (T40012)

Torque Wrench (5-50 Nm) (V.A.G 1331)

Valve Cotters Asm/Disasm Device (VAS 5161)

Guide Plate for FSI Engine (VAS 5161/19 B)

Removing

- Remove the camshafts. Refer to => [ Camshaft ] Service and Repair.

- Remove the roller rocker arms and place them on a clean surface. Make sure that the roller rocker arms are not interchanged.

- Remove the spark plugs using the spark plug removal tool (3122 B).

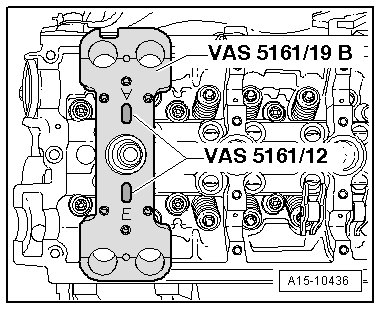

- Secure the guide plate for FSI engines (VAS 5161/19B) to the cylinder head as shown, using the knurled thumb screws (VAS 5161/12).






- Adjust the piston of the respective cylinder to Bottom Dead Center (BDC).

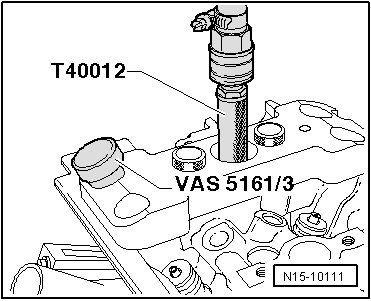

- Install the adapter (T40012) into the spark plug threads and connect the compressed air (minimum 6 bar).






- Loosen any stuck valve retainers using the punch (VAS 5161/3) and a plastic mallet.

Intake Side

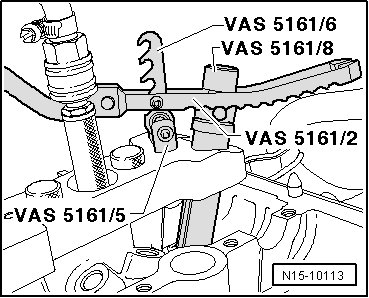

- Install the retainer (VAS 5161/6) using the guide forks M6/M8 with threaded studs (VAS 5161/5) into the center threads of the guide plate for FSI engine (VAS 5161/19B).

- Insert the assembly cartridge (VAS 5161/8) into the guide plate for FSI engine (VAS 5161/19B).

- Install the pressure fork with lever for assembly cartridge (VAS 5161/2) to the retainer (VAS 5161/6).

Exhaust Side

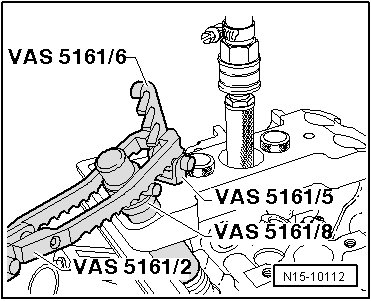

- Install the retainer (VAS 5161/6) using the guide forks M6/M8 with threaded studs (VAS 5161/5) into the outer threads in the guide plate for FSI engine (VAS 5161/19B).

- Press down the assembly cartridge (VAS 5161/8). At the same time, turn the knurled thumb screw on the assembly cartridge (VAS 5161/8) clockwise until the points engage in the valve retainers.

- Lightly move the knurled thumb screw back and forth, this causes the valve retainers to be pressed apart and captured in the assembly cartridge.

- Release the pressure fork with lever for assembly cartridge (VAS 5161/2).

- Take out the assembly cartridge (VAS 5161/8).

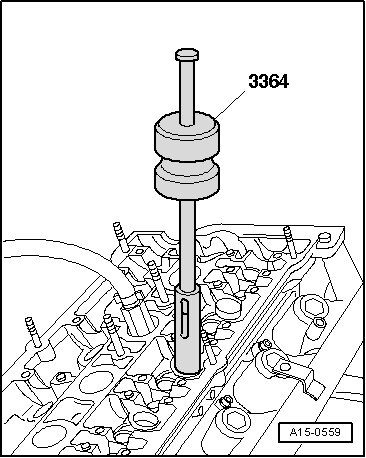

- Remove the valve stem seal using the valve seal removal tool (3364).






- If the valve seal removal tool (3364) cannot be used due to restricted clearance, drive the roll pin - arrow - out with a drift and remove the impact attachment.

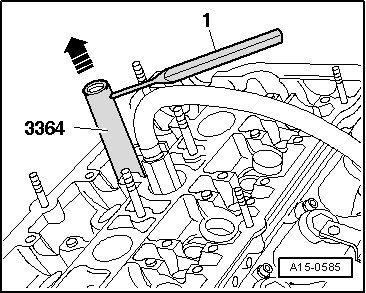

- Place the lower part of the valve seal removal tool (3364) onto the valve stem seal.






- Insert a drift - 1 - into the bore in the lower part of the tool.

- Using the drift - 1 - as a lever, remove the valve stem seal in the - direction of the arrow -.

Installing

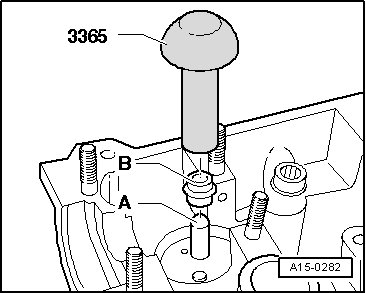

- Place the plastic sleeve - A - on the valve stem to prevent damage to the new valve stem seal - B -.

- Oil the sealing lip of the valve stem seal - B -, insert it into valve stem seal driver (3365) and carefully slide it onto the valve guide.

- Remove the plastic sleeve - A -.

- Insert the valve spring and valve spring plate.

Intake Side





- Install the valve cotters asm/disasm device (VAS 5161) components as shown.

Exhaust Side





- Install valve cotters asm/disasm device (VAS 5161) components as shown.

If the valve retainers were removed from the assembly cartridge, they must be inserted into the valve insertion device (VAS 5161/18) next.






Press the assembly cartridge (VAS 5161/8) onto the valve insertion device from above and capture the valve retainers.

- Press down the assembly cartridge (VAS 5161/8) using the pressure fork with lever for assembly cartridge (VAS 5161/2) and turn the knurled thumb screw on the assembly cartridge back and forth while pulling it upward at the same time.

- Release the pressure fork with lever for assembly cartridge (VAS 5161/2) with the knurled thumb screw pulled.

- Remove the valve cotters asm/disasm device (VAS 5161) components.

Further installation is in the reverse order of removal.
