Diagram 2/22 (Tracks 281-294)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions

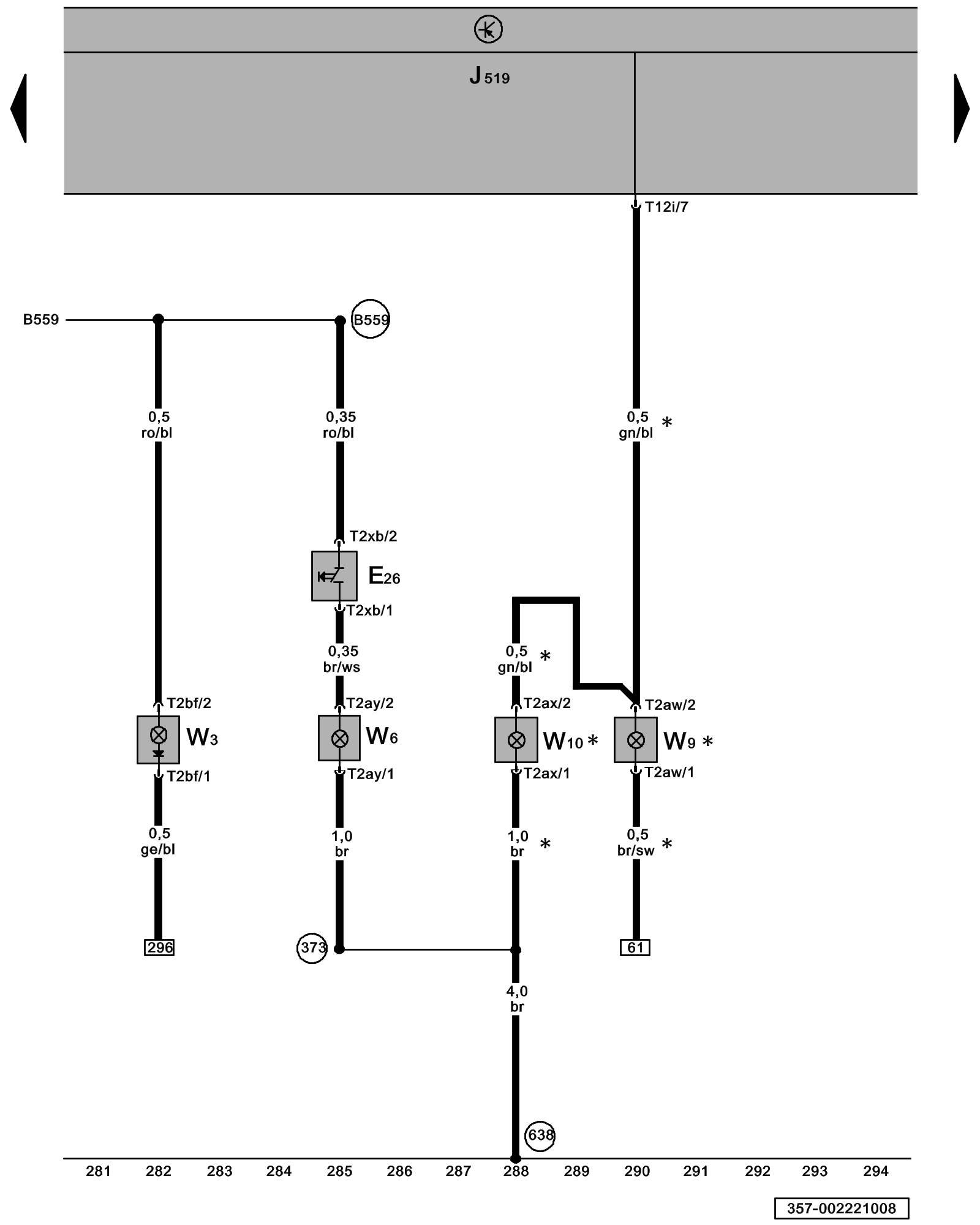

Glove Compartment Lamp Switch, Luggage Compartment Light, Footwell Lights





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E26 - Glove Compartment Lamp Switch

J519 - Vehicle Electrical System Control Module Control Modules in Interior

T2aw - Double Connector, black

T2ax - Double Connector, black

T2ay - Double Connector

T2bf - Double Connector, red

T2xb - Double Connector

T12i - 12-Pin Connector, black

W3 - Luggage Compartment Light

W6 - Glove Compartment Light

W9 - Left Footwell Light

W10 - Right Footwell Light

(373) - Ground Connection 8 (in main wiring harness)

(638) - Ground Connection (on right A-pillar) Overview Of Ground Connections in Interior

(B559) - Plus Connection 1 (30g) (in main wiring harness)

* - Applicable through October 2008
