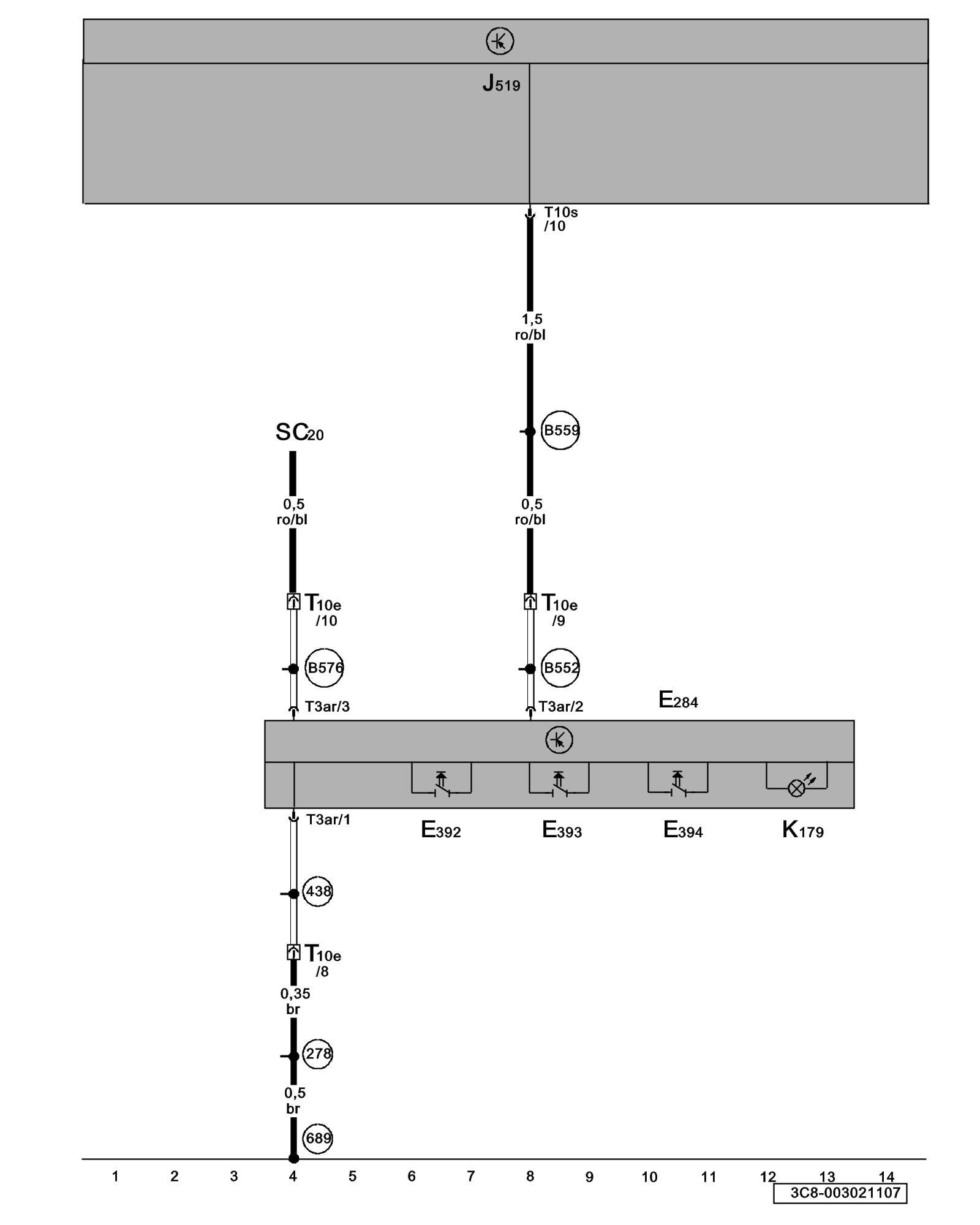

Diagram 3/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Garage Door Opener Control Head, Garage Door Opener Button





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E284 - Garage Door Opener Control Head

E392 - Garage Door Opener Button 1

E393 - Garage Door Opener Button 2

E394 - Garage Door Opener Button 3

J519 - Vehicle Electrical System Control Module Control Modules in Interior

K179 - Garage Door Opener Indicator Lamp

SC20 - Fuse 20 (on fuse panel C)

T3ar - 3-Pin Connector

T10e - 10-Pin Connector, black, connector station roof wiring harness

T10s - 10-Pin Connector, black

(278) - Ground Connection 4 (in passenger compartment wiring harness)

(438) - Ground Connection 3 (in roof wiring harness)

(689) - Ground Connection (on center/front roof) Overview Of Ground Connections in Interior

(B552) - Plus Connection 2 (in roof wiring harness)

(B559) - Plus Connection 1 (1.06oz) (in main wiring harness)

(B576) - Plus Connection 15 (in roof wiring harness)


- Foil Conductor
