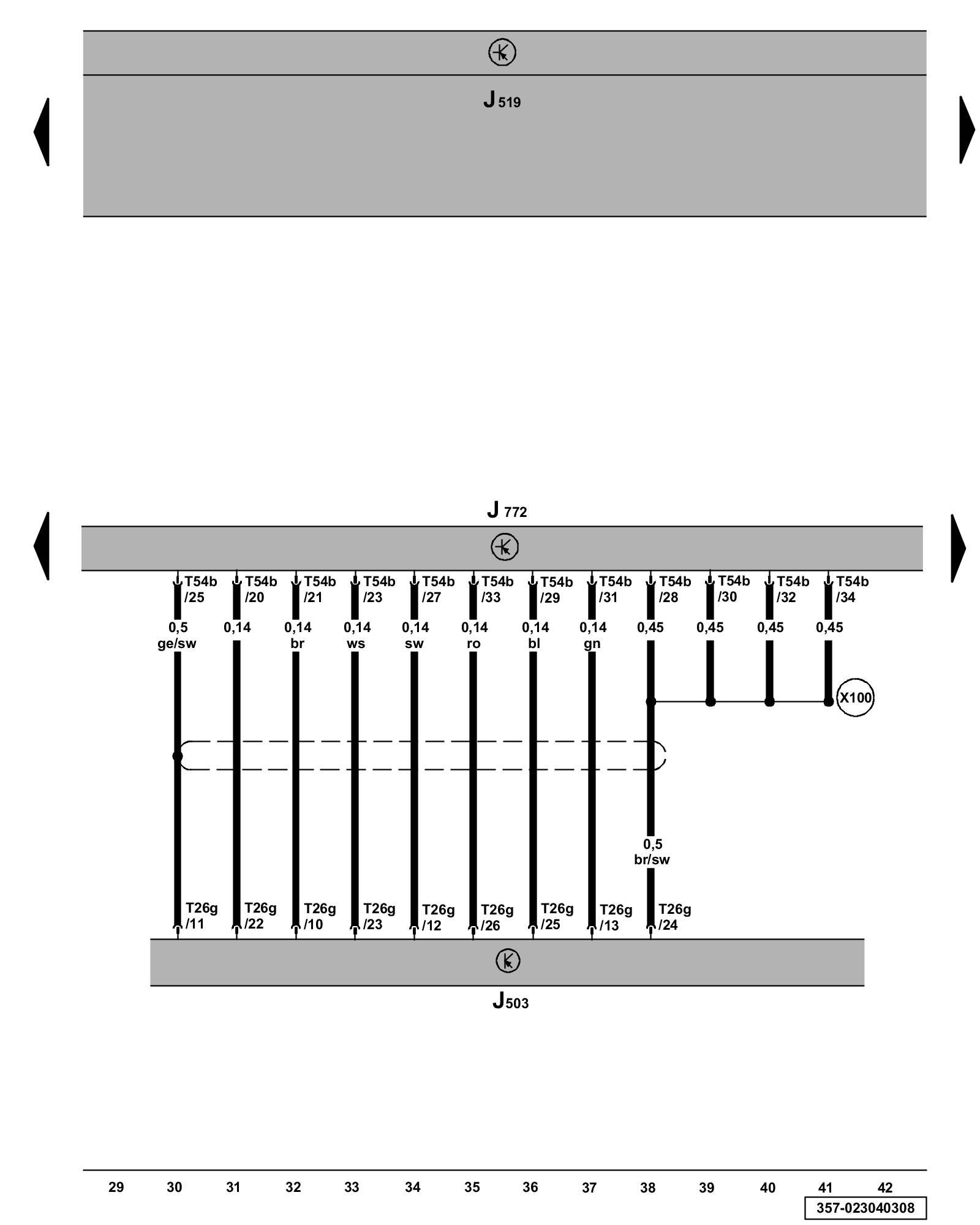

Diagram 23/4 (Tracks 29-42)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Radio/Navigation Display Control Module, Vehicle Electrical System Control Module, Rear View Camera System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J503 - Radio/Navigation Display Control Module Locations

J519 - Vehicle Electrical System Control Module Control Modules in Interior

J772 - Rear View Camera System Control Module Control Modules in Luggage Compartment

T26g - 26-Pin Connector

T54b - 54-Pin Connector

(X100) - Shielding Connection (in optional equipment wiring harness)
