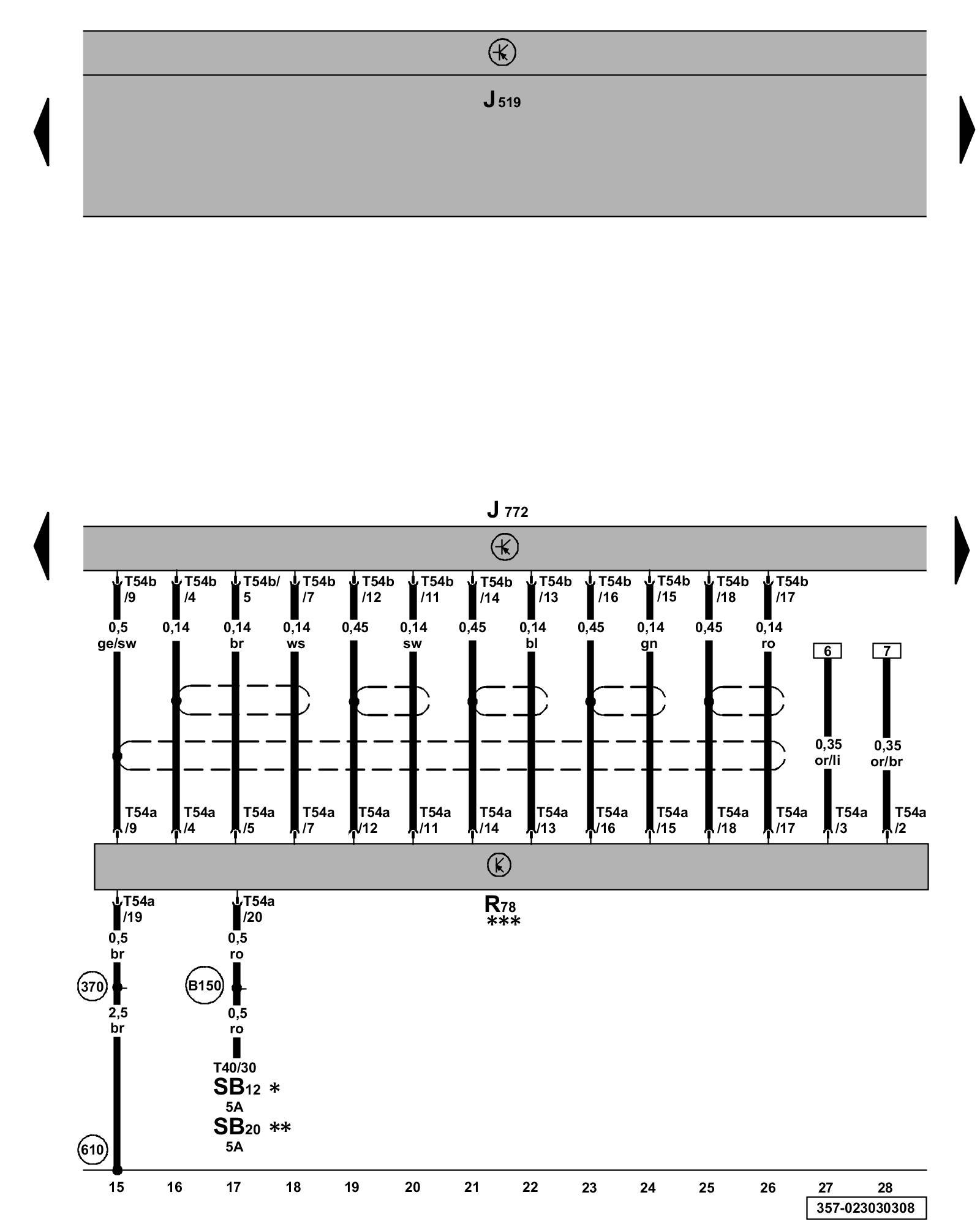

Diagram 23/3 (Tracks 15-28)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Rear View Camera System Control Module, TV Tuner





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior

J772 - Rear View Camera System Control Module Control Modules in Luggage Compartment

R78 - TV Tuner Control Modules in Luggage Compartment

SB12 - Fuse 12 (on fuse panel B)

SB20 - Fuse 20 (on fuse panel B)

T40 - 40-Pin Connector

T54a - 54-Pin Connector

T54b - 54-Pin Connector

(370) - Ground Connection 6 (in main wiring harness)

(610) - Ground Connection (Audio) (under center console, front) Overview Of Ground Connections in Interior

(B150) - Plus Connection 2 (30a) (in interior wiring harness)

* - Only models with electronics box Low

** - Only models with electronics box High

*** - Only vehicles with TV Tuner (Japan)
