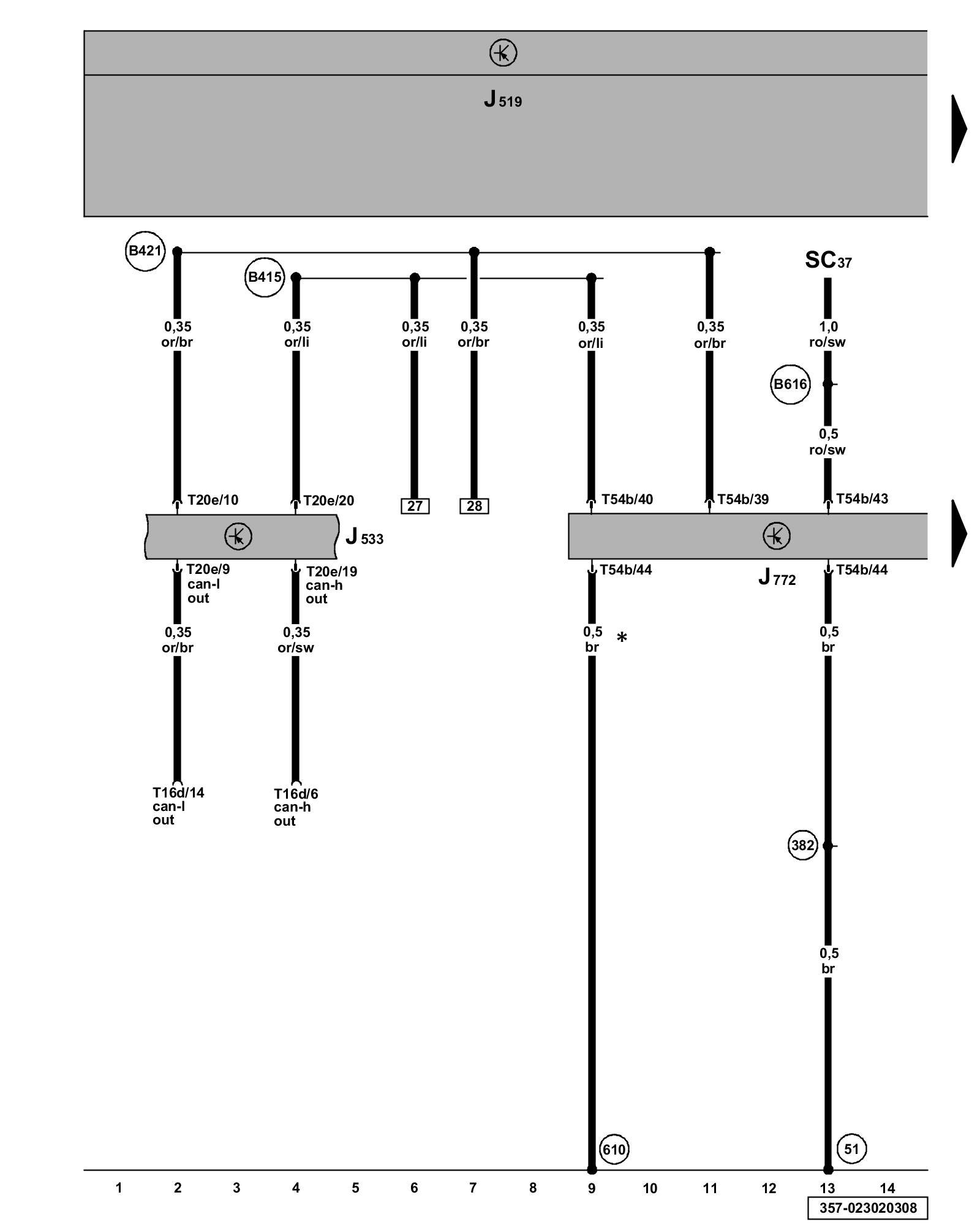

Diagram 23/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Vehicle Electrical System Control Module, Data Bus On Board Diagnostic Interface, Rear View Camera System Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

J519 - Vehicle Electrical System Control Module Control Modules in Interior

J533 - Data Bus On Board Diagnostic Interface Control Modules in Interior

J772 - Rear View Camera System Control Module, in luggage compartment, right rear Control Modules in Luggage Compartment

SC37 - Fuse 37 (on fuse panel C)

T16d - 16-Pin Connector, data link connector, under instrument panel, left

T20e - 20-Pin Connector

T54b - 54-Pin Connector

(51) - Ground Connection (in luggage compartment, right) Overview Of Ground Connections in Luggage Comp.

(382) - Ground Connection 17 (in main wiring harness)

(610) - Ground Connection (Audio) (under center console, front) Overview Of Ground Connections in Interior

(B415) - Infotainment CAN-Bus High Connection 1 (in main wiring harness)

(B421) - Infotainment CAN-Bus Low Connection 1 (in main wiring harness)

(B616) - Plus Connection 12 (30a) (in interior wiring harness)

* - Only applicable to Japanese models
