Roof Insulation and Reinforcements, Passat CC
Roof Insulation and Reinforcements, Passat CC
NOTE: An exemplary sedan without sunroof is shown in the following description.
Removing
Sedan
CAUTION: Observe safety precautions for working on airbags.
- Disconnect vehicle battery
- Remove the front and rear interior and reading lamps in the headliner
- Remove storage compartment with console in headliner
- Remove upper trim on A-pillars
- Remove sun visors.
- Basic
- Double
- Remove roof grab handle
- Remove upper B-pillar trim
- Remove trim on C-pillars, sedan:
- without sun shade
- with sun shade
- Remove roof end strip, sedan
Vehicles in which an interior rearview mirror with rain sensor is installed:
- Remove the side cover caps from the interior rearview mirror
- Remove headliner, sedan
Passat CC
- If equipped, open the Panorama sunroof.
- Switch off ignition.
- Remove the front interior and reading lights:
- Remove the roof grab handles on vehicles without Panorama sunroof
- Remove upper trim on A-pillars
- Remove the upper B-pillar trim from the brackets
- Remove visors.
- Remove the C-pillar trim:
- Vehicles not equipped with a sun shade
- Vehicles equipped with a sun shade
- Lower the headliner, Passat CC
- Cut roof insulation/reinforcements - 1 - in direction of travel in strips approx. 6 cm wide - 2 - using a carpet knife.
- Pull off strips - 2 - from roof.
- Cut back adhesive residue - 3 - using electric cutter V.A.G 1561 A and cutting blade V.A.G 1561/20 - 4 -.
NOTE: If paint structure was damaged while removing roof insulation/reinforcements, paint damage must be repaired.
Installing
NOTE: Processing instructions of adhesive must be observed when installing roof insulation/reinforcements.

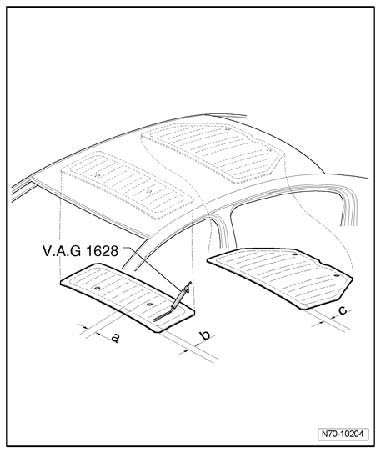

- Apply adhesive D 190 MKD A3 on to insulation/reinforcements using cartridge gun V.A.G 1628.
- Dimension - a - = 67 plusminus 2 mm
- Dimension - b - = 34 plusminus 5 mm
- Dimension - c - = 23 plusminus 5 mm
- Transport roof insulation/reinforcements into vehicle and press on to roof over the entire surface.
