Rear Lid Trim Panel, Passat from MY 2006

Rear Lid Trim Panel, Passat from MY 2006

Removing

- Remove warning triangle bracket. Refer to => [ Emergency Triangle Mount, Passat from MY 2006 ] Emergency Triangle Mount, Passat from MY 2006

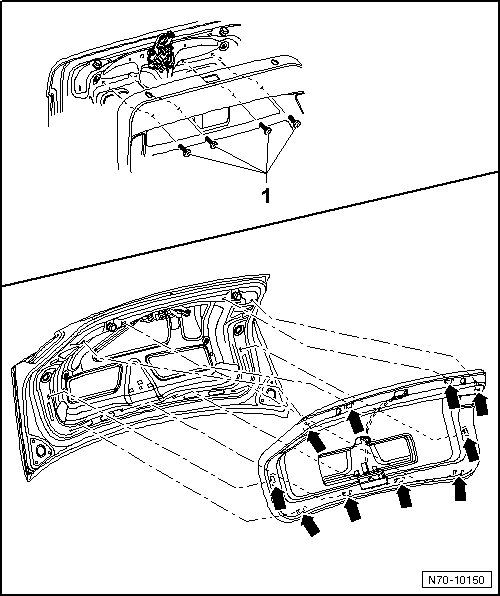

- Remove 4 screws - 1 - in grip recesses (1.5 Nm).

• In addition to the four screws, the trim is secured all around to rear lid with ten metal clips - arrows -.

- Pull trim up slightly and press metal clips - arrows - all around with a screwdriver out of mounts in rear lid.

- Disengage rear lid emergency release release from rear lid lock.






Installing

- Install in reverse order of removal.

• Before installing, check metal clips for damage and replace if necessary.
