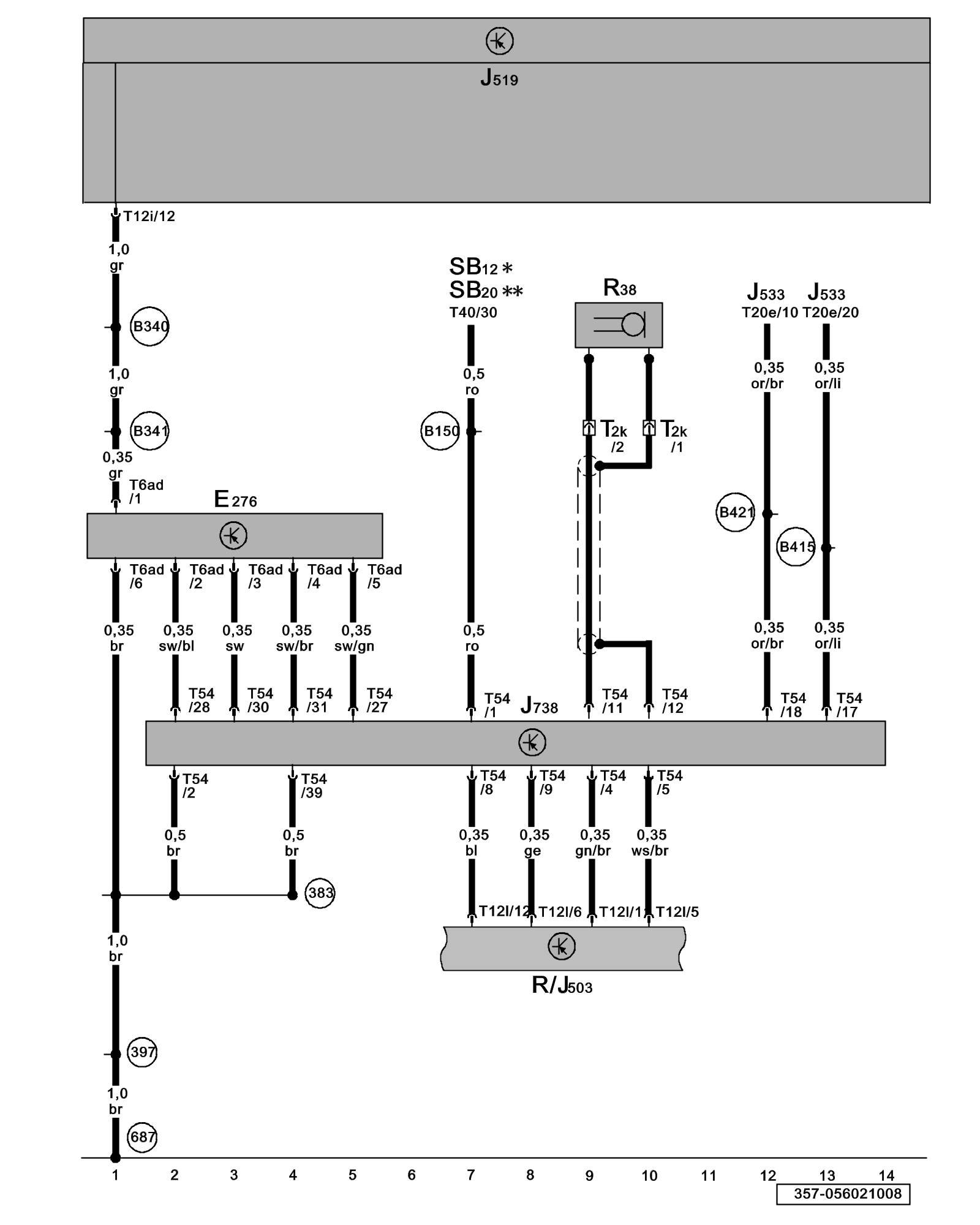

Diagram 56/2 (Tracks 1-14)

IMPORTANT NOTE:
This manufacturer uses "Track" style wiring diagrams.
For information on how to use these diagrams effectively, please refer to Diagram Information and Instructions. Diagram Information and Instructions


Operating Electronics and Telephone Control Module, Emergency Call Button, Telephone Microphone, Radio/Navigation Display Control Module





ws = white
sw = black
ro = red
br = brown
gn = green
bl = blue
gr = grey
li = lilac
ge = yellow
or = orange
rs = pink

E276 - Emergency Call Button Telephone System, Premium with Bluetooth Overview

J503 - Radio/Navigation Display Control Module Locations

J519 - Vehicle Electrical System Control Module Control Modules in Interior

J533 - Data Bus On Board Diagnostic Interface Control Modules in Interior

J738 - Operating Electronics and Telephone Control Module

R - Radio

R38 - Telephone Microphone Telephone System, Premium with Bluetooth Overview

SB12 - Fuse 12 (on fuse panel B)

SB20 - Fuse 20 (on fuse panel B)

T2k - Double Connector

T6ad - 6-Pin Connector

T12i - 12-Pin Connector, black

T12l - 12-Pin Connector, black

T20e - 20-Pin Connector

T40 - 40-Pin Connector, under electronics box, in engine compartment

T54 - 54-Pin Connector

(383) - Ground Connection 18 (in main wiring harness)

(397) - Ground Connection 32 (in main wiring harness)

(687) - Ground Connection 1 (on center tunnel) Overview Of Ground Connections in Interior

(B150) - Plus Connection 2 (30a) (in interior wiring harness)

(B340) - Connection 1 (58d) (in main wiring harness)

(B341) - Connection 2 (58d) (in main wiring harness)

(B415) - Infotainment CAN-Bus High Connection 1 (in main wiring harness)

(B421) - Infotainment CAN-Bus Low Connection 1 (in main wiring harness)

* - Only models with electronics box Low

** - Only models with electronics box High
