Antenna Amplifier: Service and Repair

Frequency Filter and Antenna Amplifier Overview

Frequency Filter and Left Antenna Amplifier, Overview






1 FM Frequency Filter In Positive Wire (R179)

• Its function is to prevent antenna signals from shorting to Ground (GND).

• Removing and installing, refer to => [ Left Frequency Filter and Antenna Module ] Left Frequency Filter and Antenna Module.

2 Left Antenna Module (R108)

• For FM2 or FM2/DAB reception

• Impedance converter

• Removing and installing, refer to => [ Left Frequency Filter and Antenna Module ] Left Frequency Filter and Antenna Module.

3 Body, Left C-Pillar Next To The Rear Window

4 Head Airbag

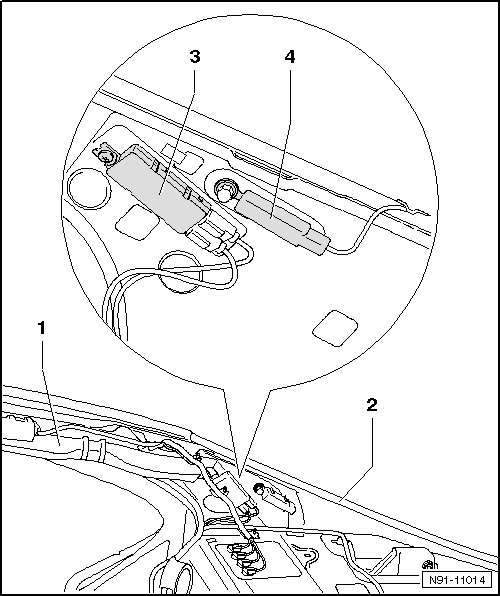

Frequency Filter and Right Antenna Amplifier Overview






1 Head Airbag

2 Body, Right C-Pillar Next To The Rear Window

3 Right Antenna Module (R109)

• For FM/AM reception

• Impedance converter

• Removing and installing, refer to => [ Right Frequency Filter and Antenna Module ] Right Frequency Filter and Antenna Module.

4 FM Frequency Filter In Negative Wire (R178)

• Its function is to prevent antenna signals from shorting to Ground (GND).

• Removing and installing, refer to => [ Left Frequency Filter and Antenna Module ] Left Frequency Filter and Antenna Module.
