Wiper Motor, with Wiper Frame

Wiper Motor, with Wiper Frame

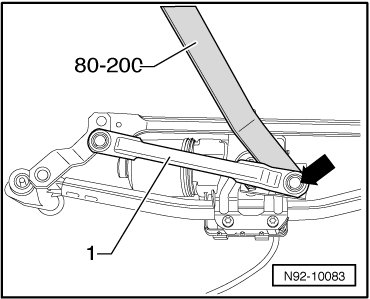

- Pry off ball head - arrow - of linkage - 1 - from motor crank using pry lever (80-200).

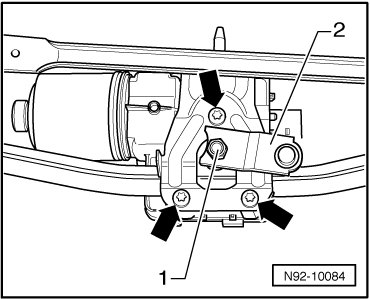

- Remove mounting nut - 1 -.





- Remove motor crank - 2 - from wiper motor shaft.

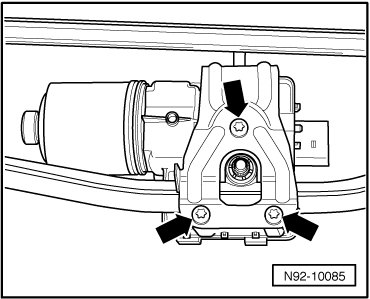

- Remove mounting bolts - arrows - and remove wiper motor with control module out of wiper frame.

Installing





- Insert wiper motor with control module into wiper frame and secure it with mounting bolts - arrows -.

- Tighten all threaded connections to the specification. Refer to=> [ Specifications ] Specifications.

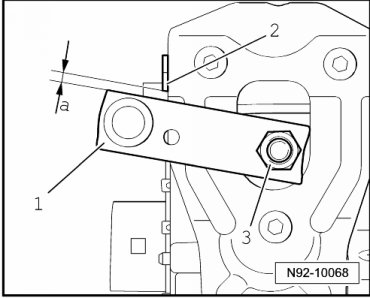

- Place motor crank - 1 - onto wiper motor shaft. Distance - a - to stop - 2 - must be 3 ± 1 mm.





- Screw motor crank to wiper motor shaft using mounting nut - 3 -.

- Tighten all threaded connections to the specification. Refer to=> [ Specifications ] Specifications.

- Push ball head - arrow - of linkage - 1 - on to motor crank.
