Windshield Wiper Blade

Windshield Wiper Blade

Removing

• Right and left wiper blades may not be interchanged during installation.

• Joint-free windshield wipers are very flexible. Grasp wiper blades only in area of wiper blade mount to lift them off the windshield.

• To remove wiper blades, wiper arms must be driven into "service/winter position". The "service/winter position" is activated by operating windshield wiper lever in "one-touch wiping" position within 10 seconds after switching off ignition.

- Move wiper arms into "service/winter position" by moving windshield wiper lever into "one-touch wiping" position within 10 seconds after switching off ignition.

- Fold up wiper arm.

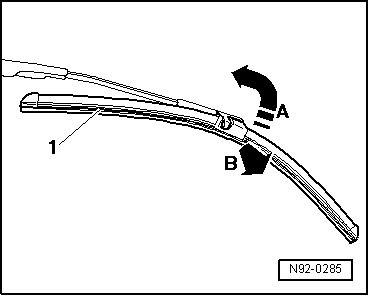

- Turn wiper blade - 1 - on wiper arm until it reaches stop - arrow A -.





- Pull off wiper blade - 1 - from wiper arm axle - arrow B -.

Installing

- Slide wiper blade onto axle of wiper arm.

- Turn wiper blade on wiper arm axle until it reaches stop.

- Carefully fold wiper arm back onto windshield.
