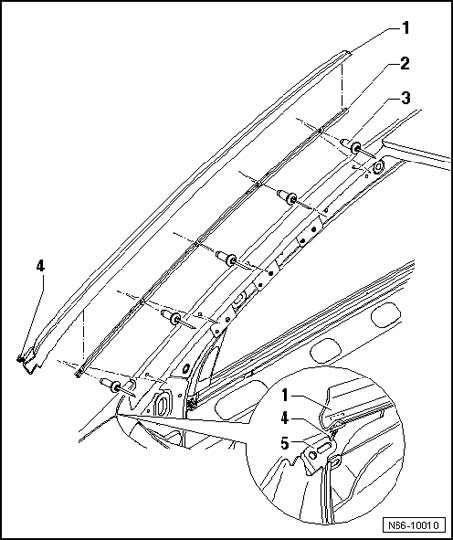

Drip Rail Assembly Overview

Drip Rail Assembly Overview

NOTE: The description applies to the right side. The left side is similar







1 - Drip rail
2 - Retaining strip
3 - Pop rivet
- Qty. 5

4 - Clip
5 - Bracket
