Drip Rail

Drip Rail

Removing

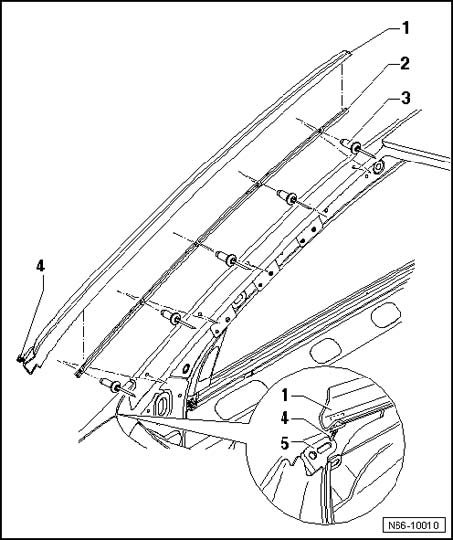

- Pry drip rail - 1 - from retaining strip - 2 - starting from top.







- Remove clip - 4 - from bracket - 5 - in lower fender area.

Installing







- Engage clip - 4 - in bracket - 5 -.







- Press drip rail - 1 - from bottom to top into retaining strip - 2 -.
