Rear Window, Undamaged

Rear Window, Undamaged

Removing

- Removing side luggage compartment trim

- Removing rear window wiper motor

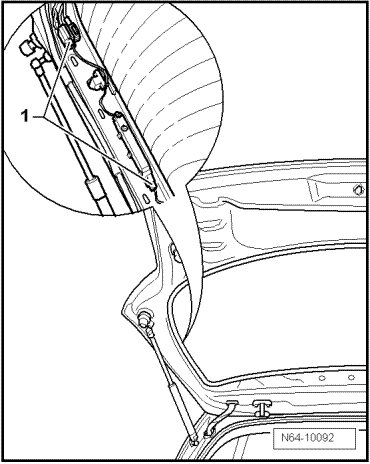

- Disconnect left and right heated rear window and window antenna connectors - 1 -.

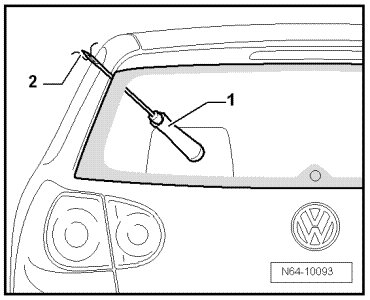

- Thrust awl (V.A.G 1474/2) - 1 - through adhesive bead.





- Pull cutting cord - 2 - inside through adhesive material using awl (V.A.G 1474/2) - 1 -.

- Secure end of cutting cord - 3 - with handle - 1 - before pulling out.

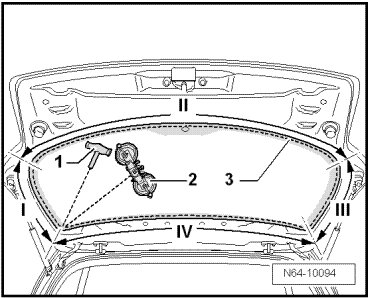

- Lay cutting cord - 3 - around the window and also guide inside the second cord end.

- Secure end of cutting cord to spooling tool ( V.A.G 1654) - 2 -.

- Place spooling tool (V.A.G 1654) - 2 - in "position I".

- Relocate spooling tool (V.A.G 1654) - 2 - appropriately and cut window free.

- While cutting free, press cutting cord - 3 - against window using wedge (V.A.G 1474/5) to have clearance to window flange.

Installing

Window, Preparing for Glazing => [ Window, Undamaged, Preparing for Glazing ] Window, Undamaged, Preparing for Glazing

Window, New, Preparing for Glazing => [ Window with Pre-Coating, New, Preparing for Glazing ] Window with Pre-Coating, New, Preparing for Glazing

Window Flange, Preparing for Glazing => [ Window Flange, Preparing for Glazing ] Window Flange, Preparing for Glazing

Installation Information => [ Installation Information ] Installation Information

Minimum Curing Time => [ Minimum Curing Time ] Minimum Curing Time
