Heated Glass Element Relay: Locations

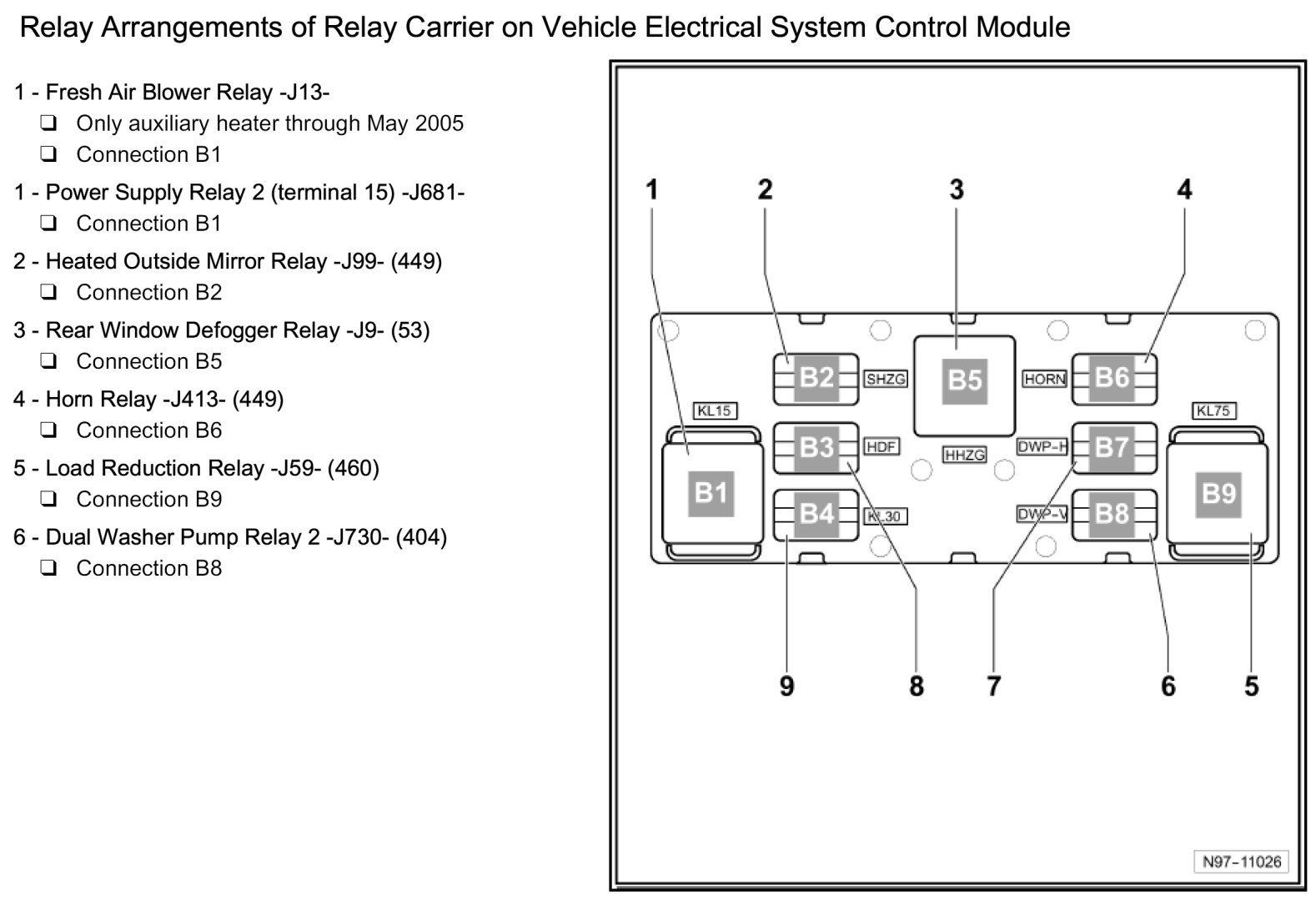

Relay Arrangements Of Relay Carrier On Vehicle Electrical System Control Module Part 1:

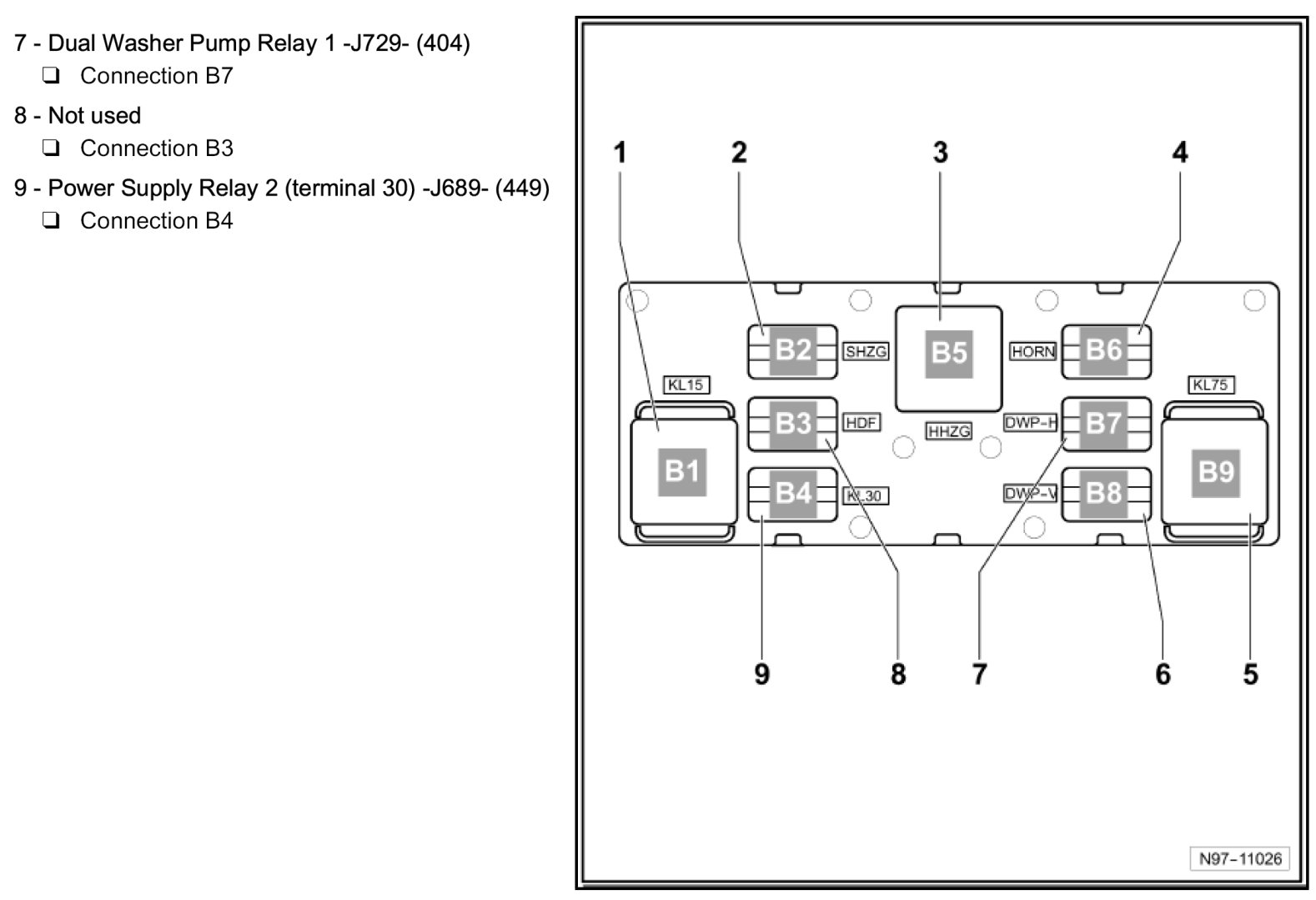

Relay Arrangements Of Relay Carrier On Vehicle Electrical System Control Module Part 2:
