Clutch (Sachs), Servicing

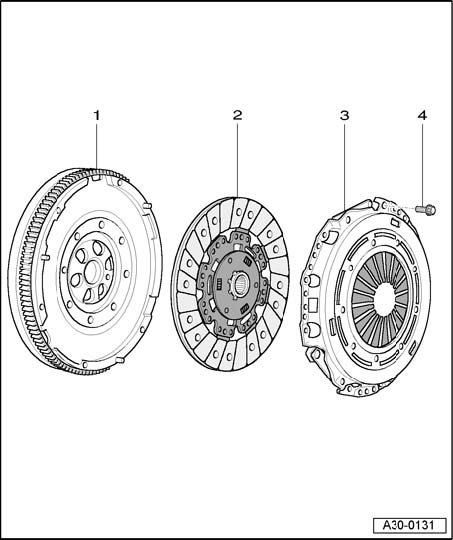

Clutch (Sachs), servicing - 0A4, 5 Speed M/T





1 - Dual-mass flywheel
^ Make sure centering pins fit securely
^ Contact surface for clutch lining must be free of grooves, oil and grease
2 - Clutch plate
^ Only replace together with pressure plate
^ Installed location
3 - Pressure plate
^ With adjustment mechanism
^ Checking ends of diaphragm spring
^ Check connections of springs and rivets
^ Only replace together with clutch plate
4 - Bolt M7, 20 Nm
^ Loosen and tighten in small steps and in diagonal sequence
