Clutch (LuK), Servicing

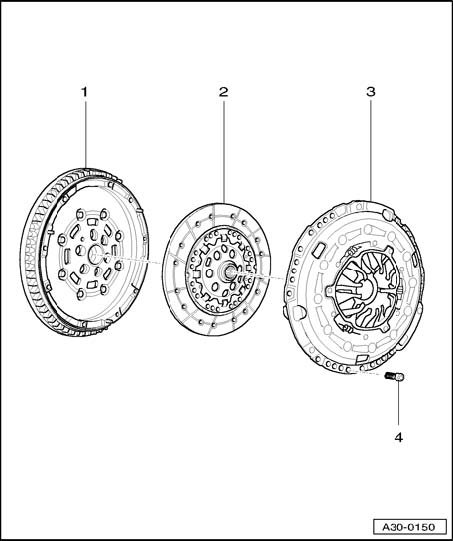

Clutch (LuK), servicing - 0A4, 5 Speed M/T





1 - Dual-mass flywheel
^ Make sure centering pins fit securely
^ Contact surface for clutch lining must be free of grooves, oil and grease
2 - Clutch plate
^ Only replace together with SAC pressure plate
^ Installation position:
3 - SAC pressure plate
^ SAC = "Self Adjusting Clutch"
^ Only replace together with clutch plate
^ Check and, if necessary, reset self-adjusting pressure plate adjusting ring on "LuK" clutches
^ Checking ends of diaphragm spring
^ Check spring connection and rivet connections
4 - Bolt M6, 13 Nm
^ Loosen and tighten in small steps and in diagonal sequence
