Sachs Clutch Assembly Overview

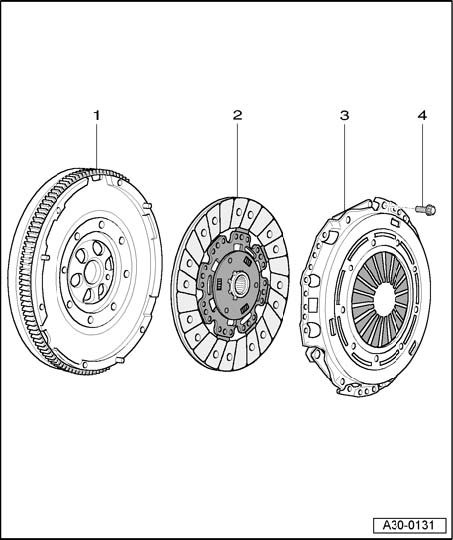

Sachs Clutch Assembly Overview - 0A4, 5 Speed M/T





1 - Dual-mass flywheel
^ Make sure centering pins fit securely
^ Contact surface for clutch lining must be free of grooves, oil and grease
2 - Clutch plate
^ Only replace together with pressure plate
3 - Pressure plate
^ With adjustment mechanism
^ Check spring connections and rivet connections
^ Only replace together with clutch plate
4 - M6 bolt, 13 Nm, M7 bolt, 20 Nm
^ Loosen and tighten in diagonal sequence and in stages
