LuK Clutch Assembly Overview

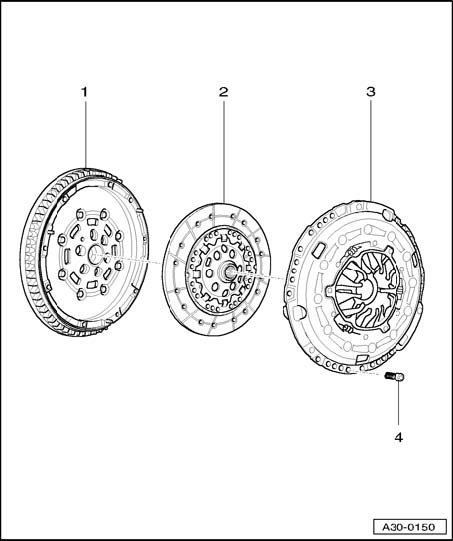

LuK Clutch Assembly Overview - 0A4, 5 Speed M/T





1 - Dual-mass flywheel
^ Removing and installing.
^ Make sure centering pins fit securely
^ Contact surface for clutch lining must be free of grooves, oil and grease
2 - Clutch plate
^ Only replace together with SAC pressure plate
3 - SAC pressure plate
^ SAC = "Self Adjusting Clutch"
^ Only replace together with clutch plate
^ Check spring connection and rivet connections
^ Only check position of adjustment mechanism with new pressure plates
4 - M6 bolt, 13 Nm, M7 bolt, 20 Nm
^ Loosen and tighten in diagonal sequence and in stages
