Fuses in Interior
>>

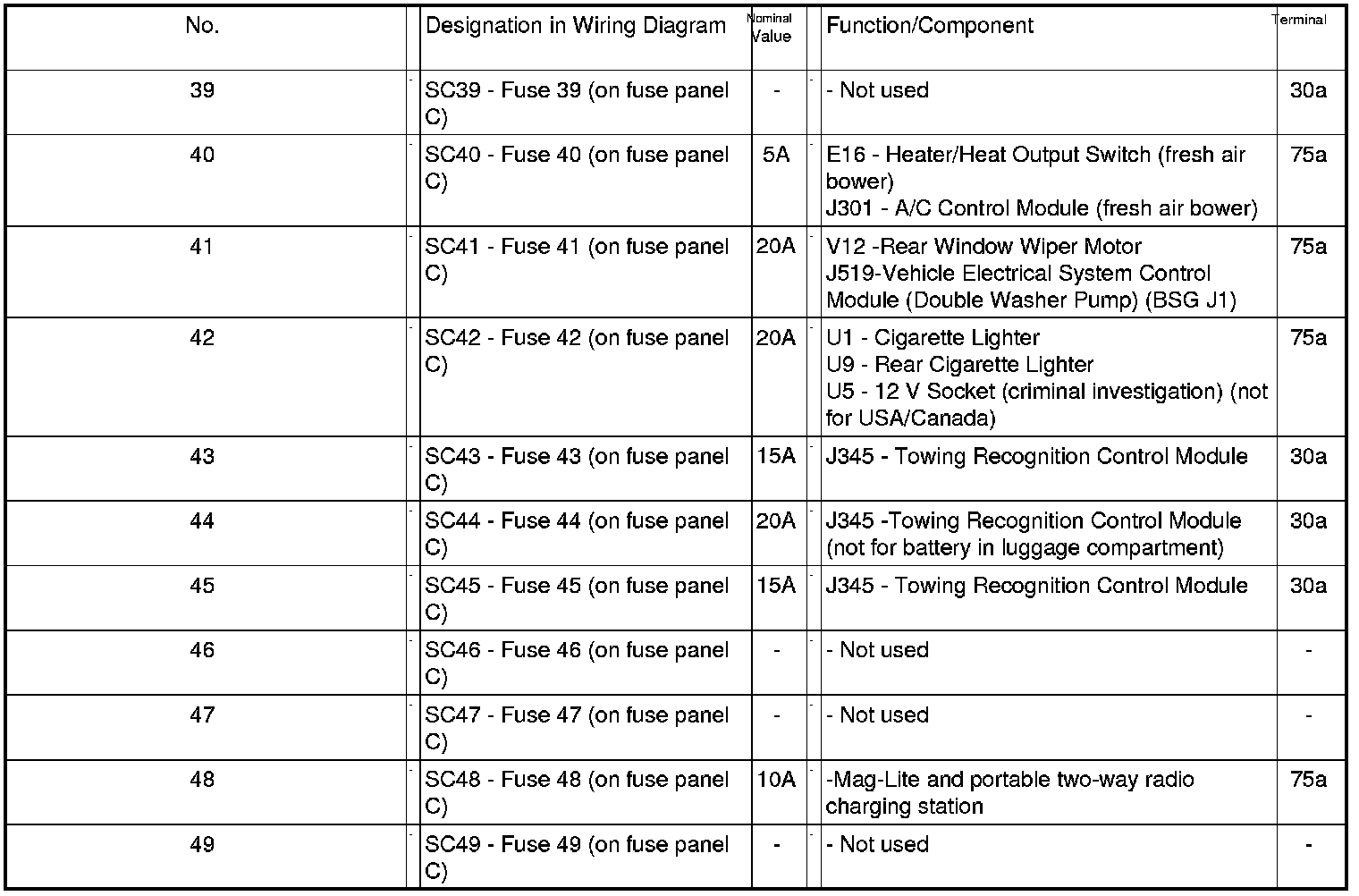

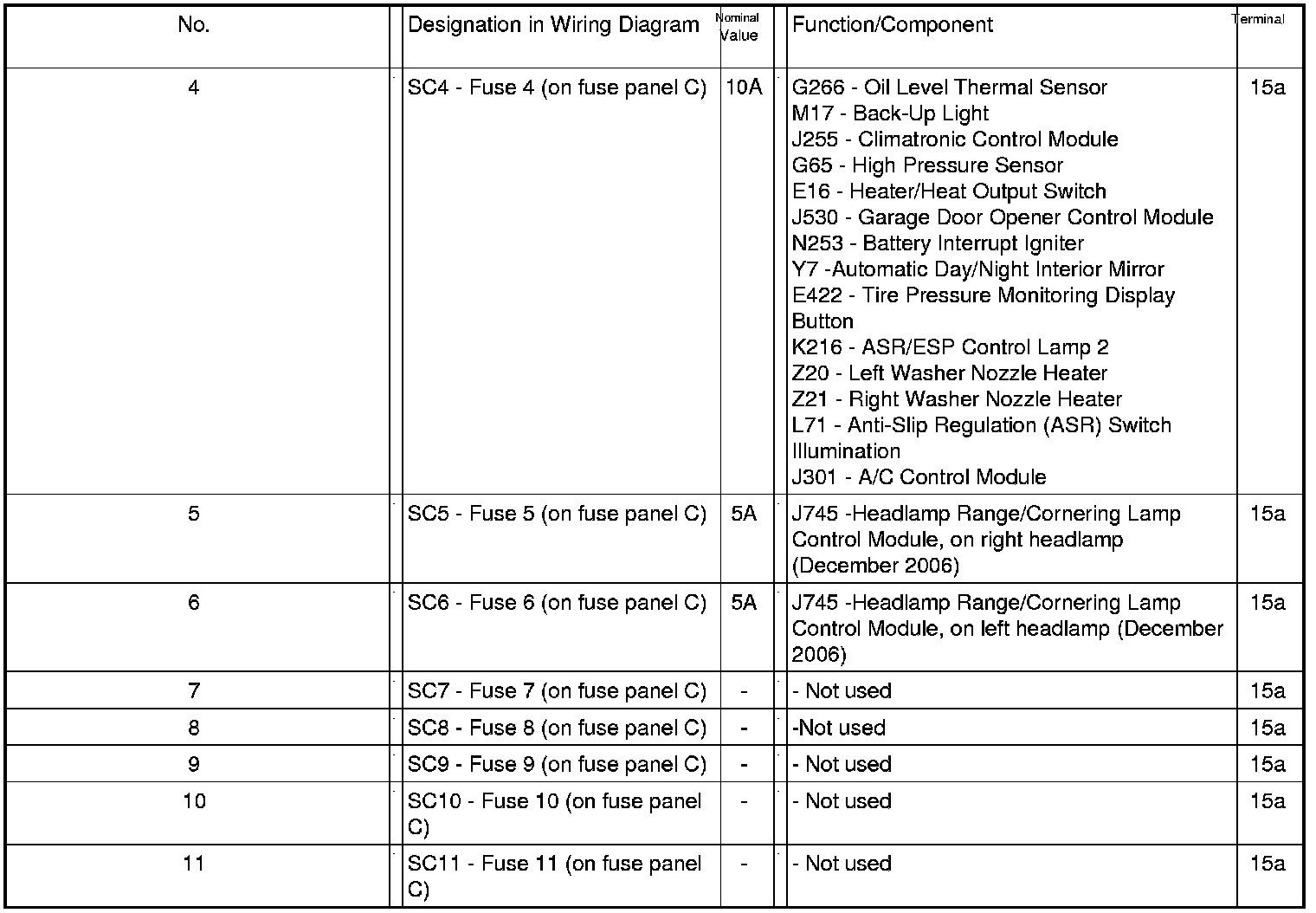

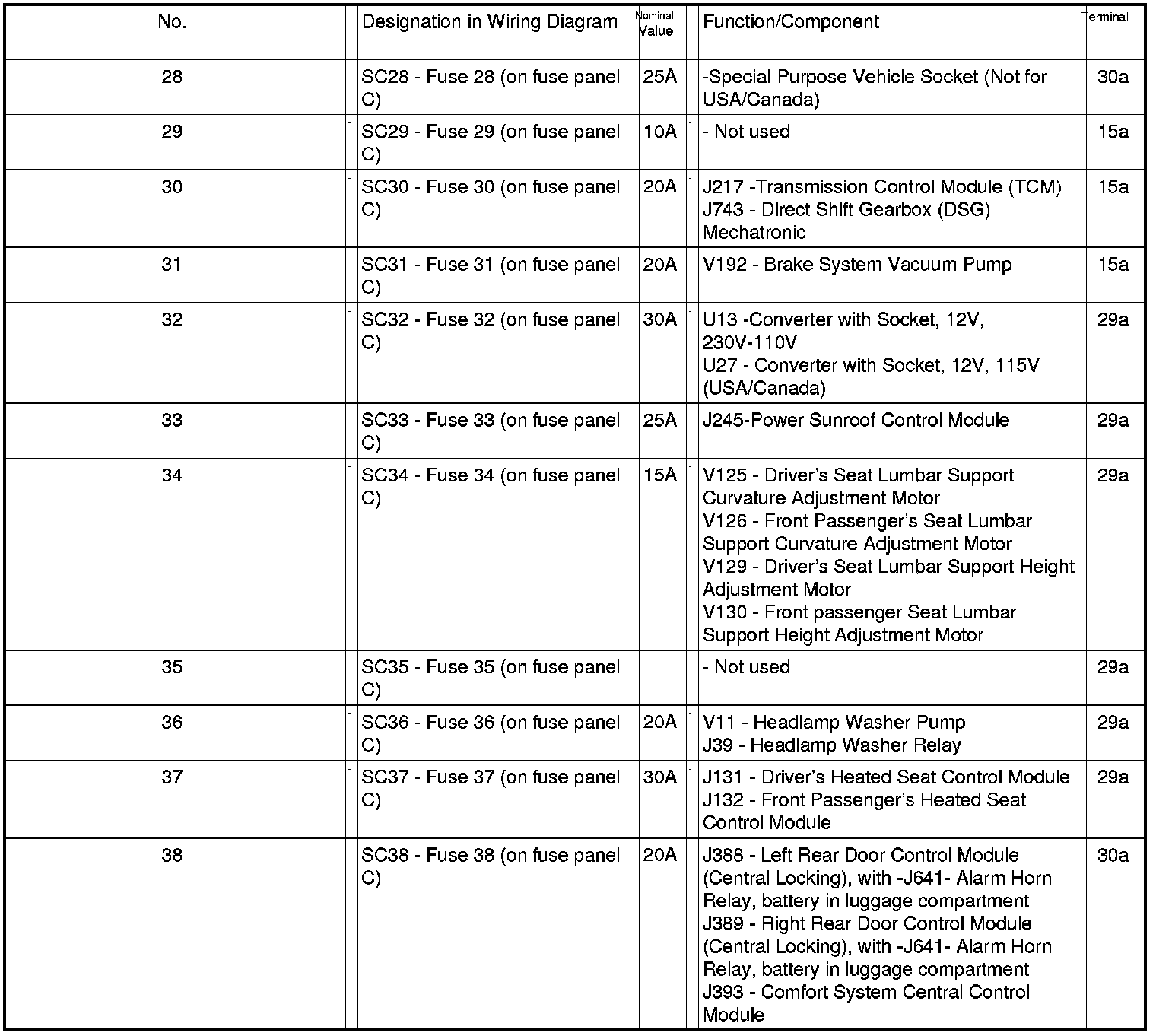

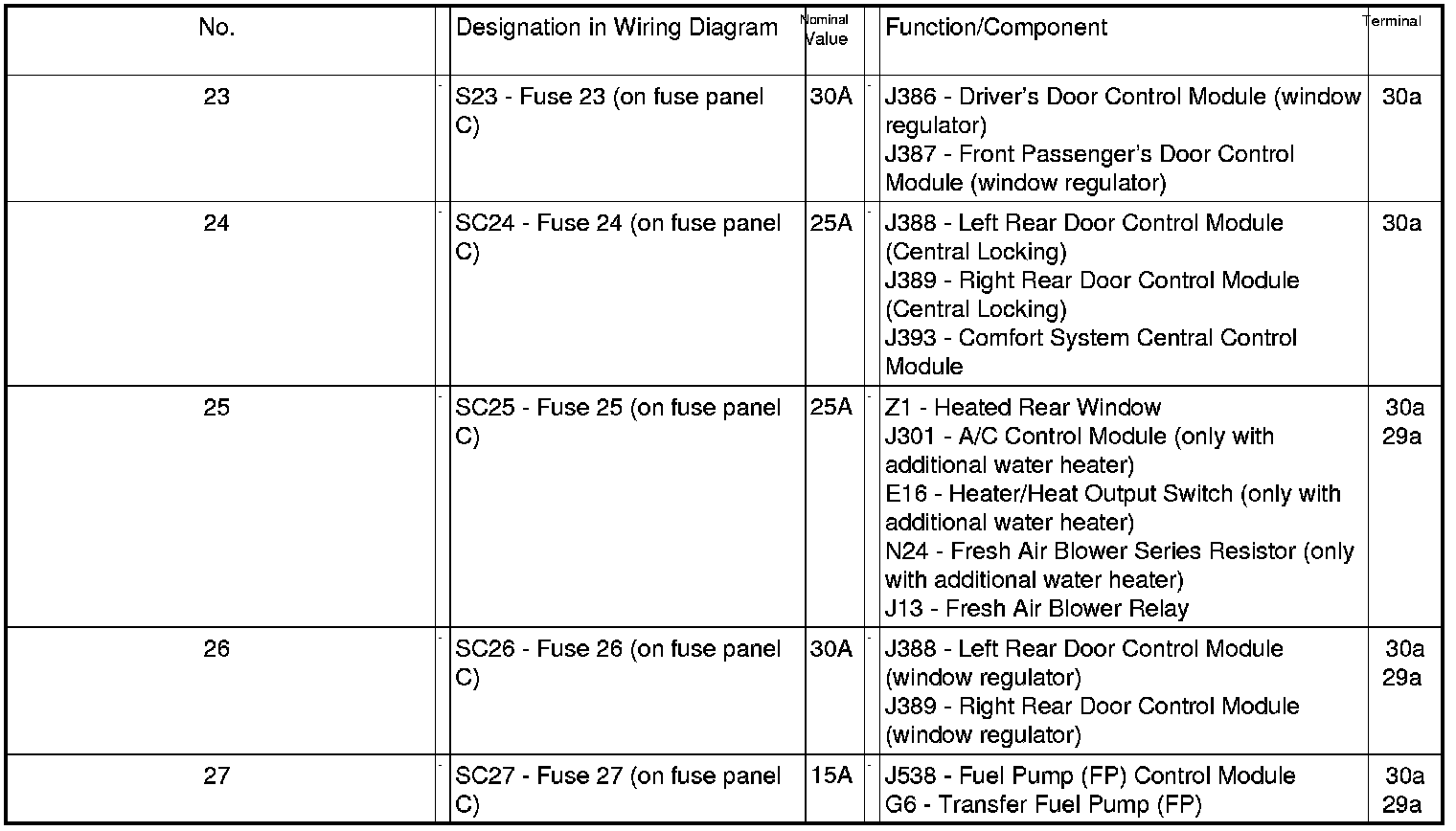

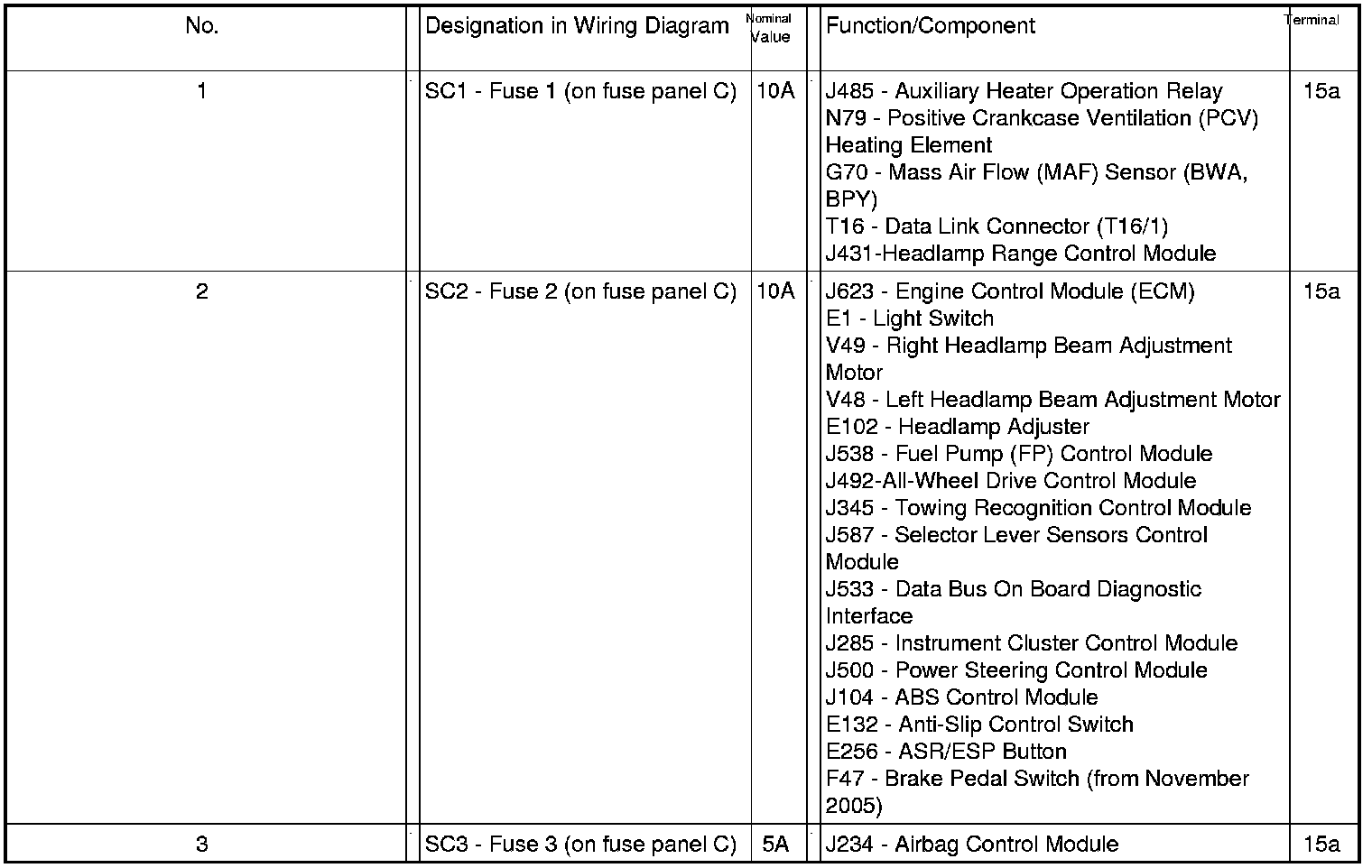

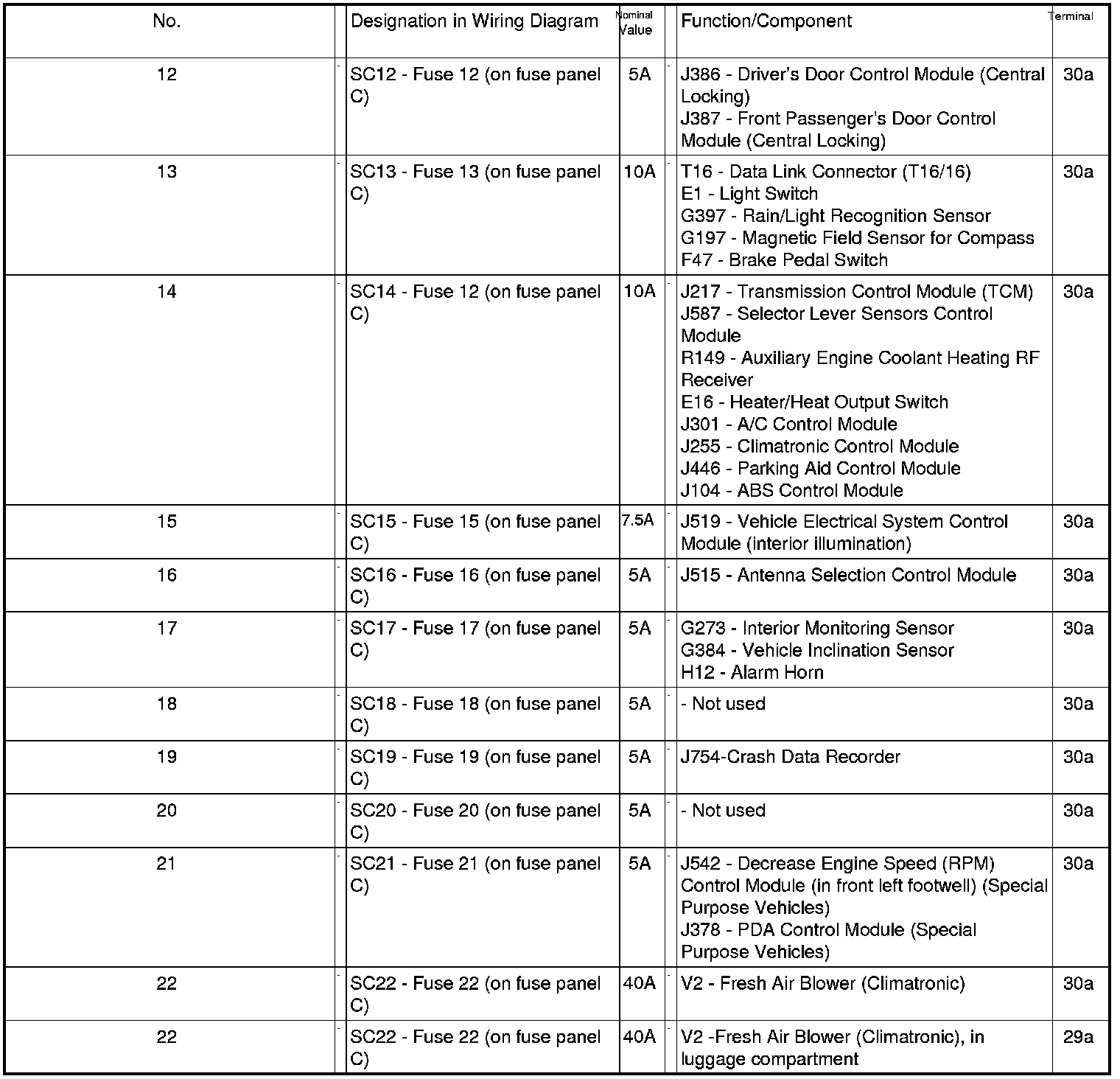

Fuse Arrangements Electronics Box High, From May 2007
Fuse Arrangements Electronics Box High, From May 2007
Fuse in interior
Fuse Arrangements Electronics Box High, from May 2007
