Fuses (SB) On Electronics Box Low, Engine Compartment, Left

Fuses in engine compartment

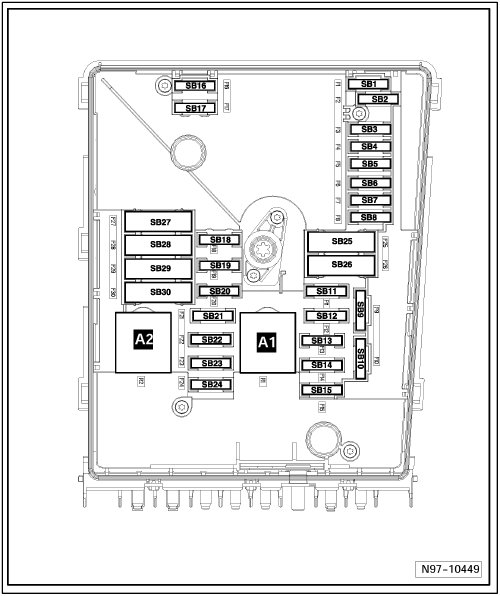

Fuses (SB) on Electronics Box Low, engine compartment, left




Fuse Colors







-
50 A - red
40 A - orange
30 A - light-green
25 A - natural (white)
20 A - yellow
15 A - light-blue
10 A - red
7.5 A - brown
5 A - light-brown
3 A - purple
