Relay Carrier with Fuse Holder under Left Instrument Panel, Removing and Installing

Relay Carrier with Fuse Holder under Left Instrument Panel, Removing and Installing

CAUTION!
When disconnecting and connecting battery, the procedure must be followed as described in the repair information. Refer to=> [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

Removing

- Disconnect battery. Refer to => [ Battery, Disconnecting and Connecting ] Battery, Disconnecting and Connecting.

- Remove storage compartment on driver's side

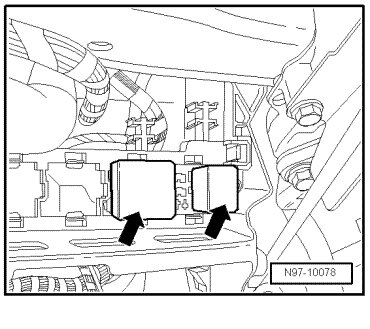

- Remove relays - arrows - from relay carrier.





• The number of relays is dependent on vehicle equipment.

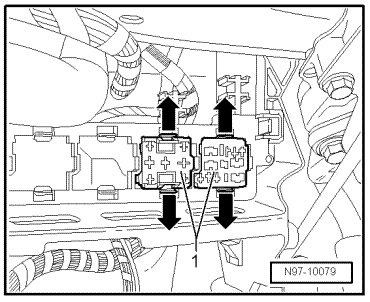

- Clip retaining tabs in - direction of arrow - outward and then press connectors - 1 - through relay carrier.

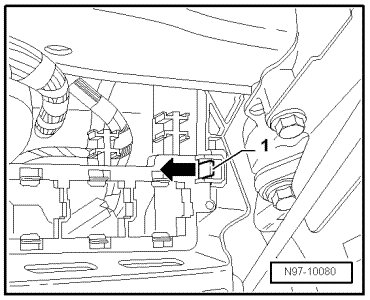

- Release retainer - 1 - for relay panel in direction of - arrow - and remove relay panel.





Installing

Install in reverse order of removal, noting the following:

- First clip connector into relay carrier.

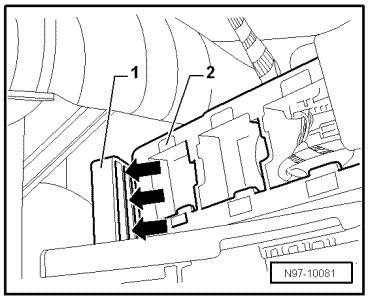

- Place relay carrier - 2 - into guide - 1 - and then engage relay carrier.
