Rear Suspension

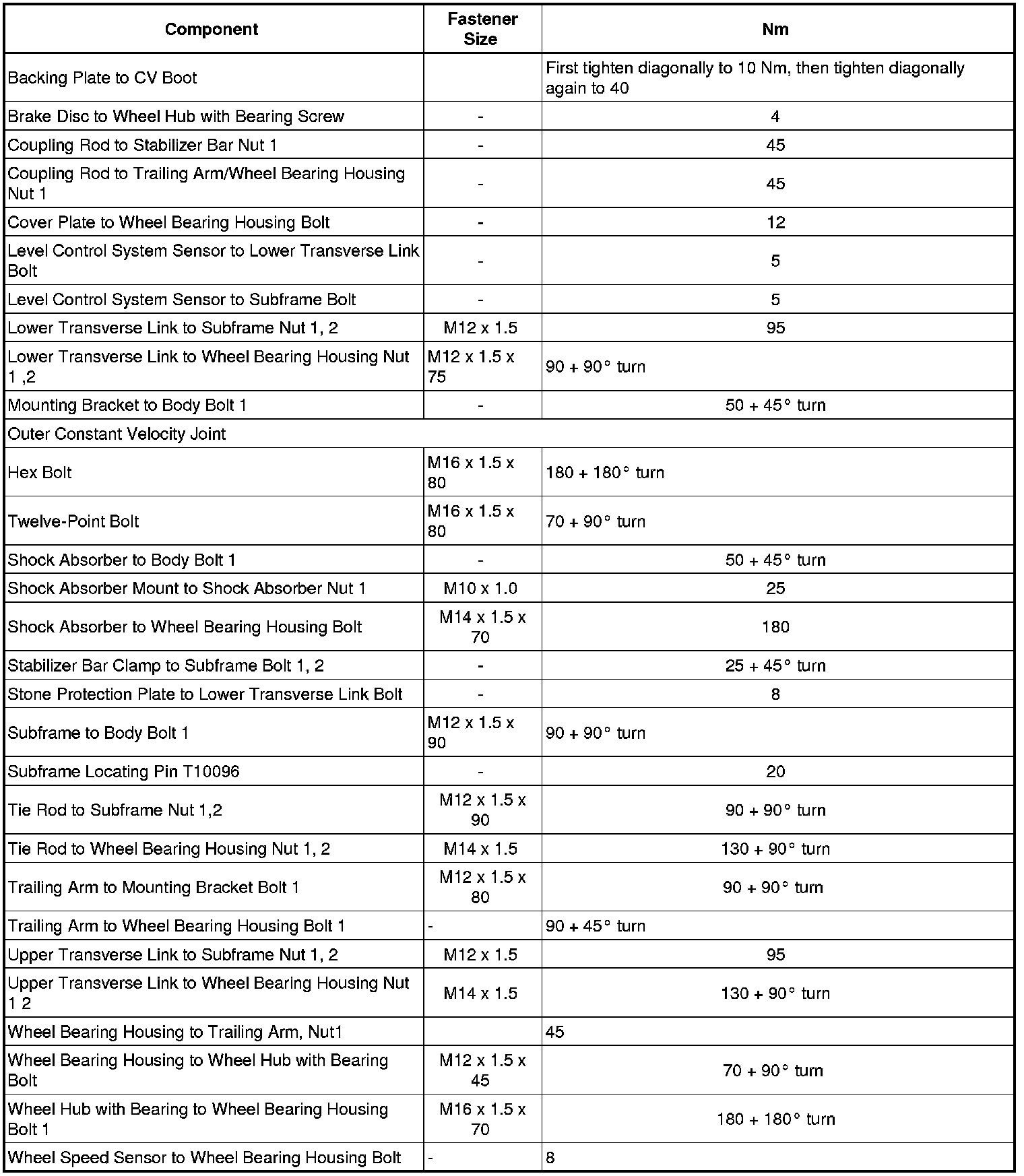

Fastener Tightening Specifications, Front Wheel Drive





• 1 Always replace

• 2 Always tighten the threaded connection in curb weight position
